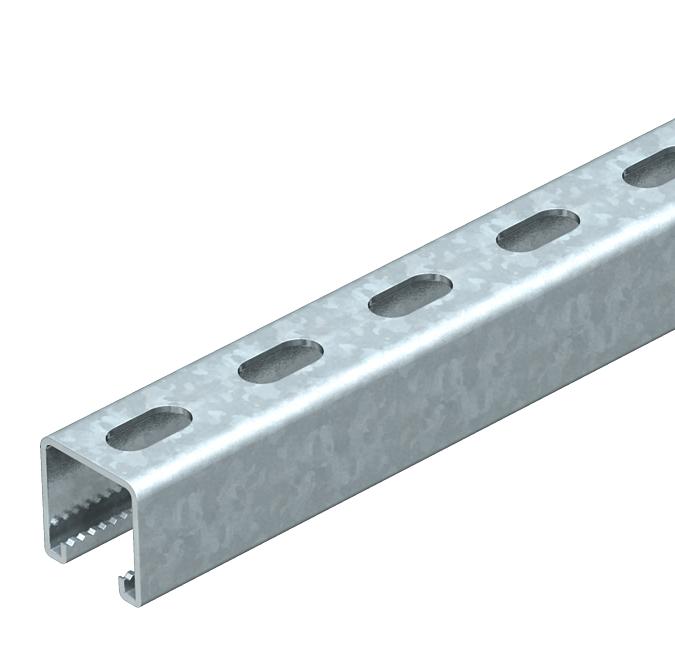

MSL4141 mounting rail, slot 22 mm, FT, perforated

Type MSL4141P3000FT | Item no. 1122964 | EAN 4012195698098

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

1122964 / MSL4141P3000FT

Surface

Hot-dip galvanised

Smallest selling unit: 3 m

Description Technical data Downloads Accessories Variants

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

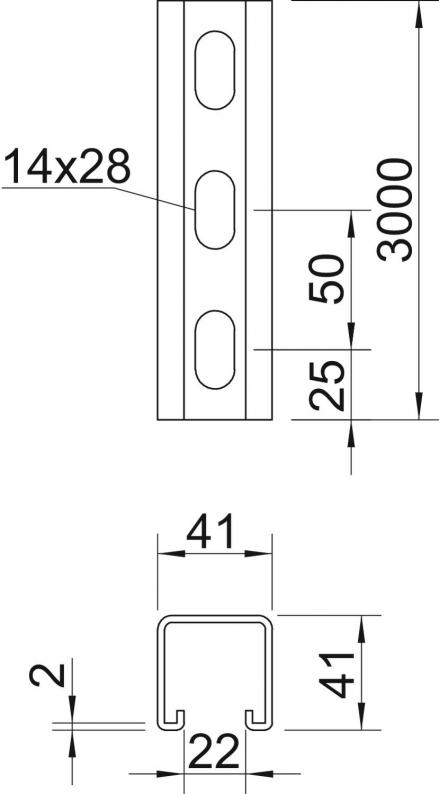

Dimensions

Length	3000 mm
Width	41 mm
Height	41 mm
Dimension L	3000 mm

Technical data

Maintain electrical functions	yes
Slot width	22 mm
Material thickness	2 mm
Static value A	2,45 cm²
Static value ly	5,18 cm⁴
Static value lz	7,56 cm⁴
Static value Wy	2,51 cm³
Static value Wz	2,69 cm³
Hole size	14x28 mm
Profile shape	C profile
Type of perforation	Perforated back
Drill hole spacing, centre	50 mm
With perforation	yes
Breakable	no
With toothing	yes
Version for	Single profile
Dimension	3000x41x41
Surface	Hot-dip galvanised
Material	Steel
CO2 Footprint (GWP) Cradle-to-Gate	4,4328 kg CO₂e / 1 Meter

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (4)

Declarations (4)

Product images (3)

3D data downloads (2)

Tender specifications (2)

Accessories

System accessories

Item no. 1175122

Clamp clip, single, FT plastic pressure trough

Type

2056U 12 FT

Smallest selling unit: 100 piece

Item no. 1175211

Clamp clip, single, FT plastic pressure trough

Type

2056U 22 FT

Smallest selling unit: 100 piece

Item no. 1175289

Clamp clip, single, FT plastic pressure trough

Type

2056U 28 FT

Smallest selling unit: 100 piece
