MS4182 mounting rail, slot 22 mm, double, FT, perforated

MS4182 mounting rail, slot 22 mm, double, FT, perforated

Type MS4182P6000FT | Item no. 1122673 | EAN 4012195698029

Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Surface
Hot-dip galvanised

Smallest selling unit: 6 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

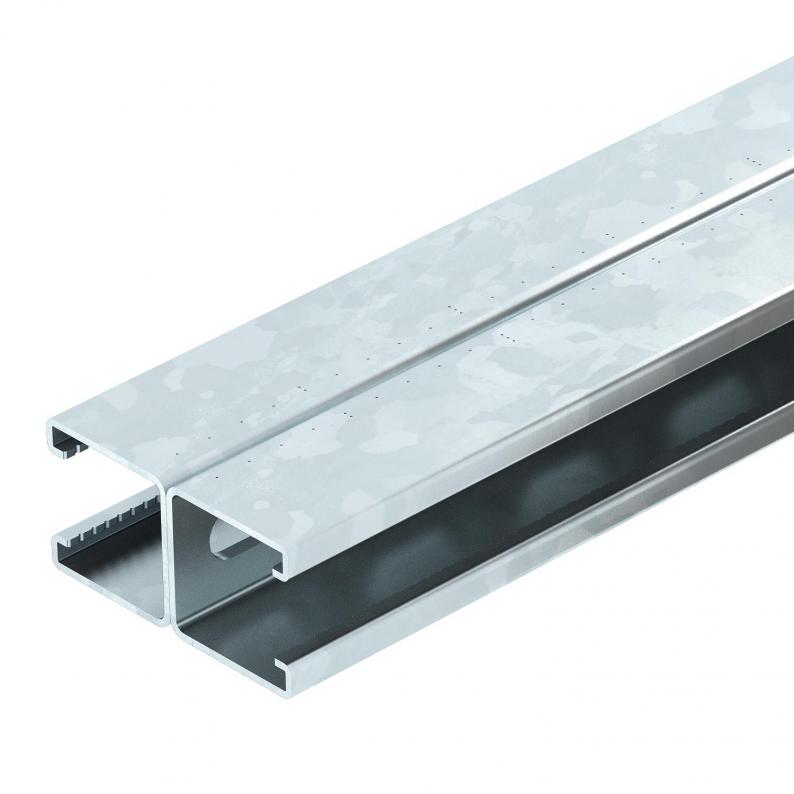

Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
  • CO₂ footprint (PCF)

Technical data

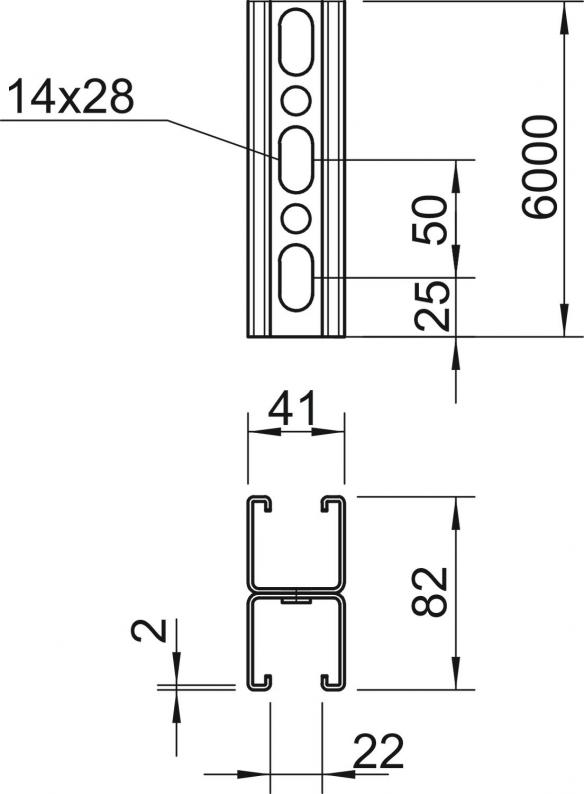

Dimensions

Length6000 mm
Width41 mm
Height82 mm
Dimension L6000 mm

Technical data

Maintain electrical functionsno
Slot width22 mm
Material thickness2 mm
Static value A4,9 cm²
Static value ly30,69 cm⁴
Static value lz15,11 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
Hole size14x28 mm
Profile shapeC profile
Type of perforationPerforated bar
Breakableno
With toothingyes
Version forDouble profile
Dimension6000x41x82
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate9,0346 kg CO₂e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (3)
Tender specifications (2)

Accessories

System accessories
Type
2056U 12 FT

Smallest selling unit: 100 piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

Type
2056U 28 FT

Smallest selling unit: 100 piece

Variants

Length
MS4182P3000FT
Item no.
1122671
Length
3000
Width
41
Height
82
Material thickness
2
Surface
Hot-dip galvanised
MS4182P6000FT
Item no.
1122673
Length
6000
Width
41
Height
82
Material thickness
2
Surface
Hot-dip galvanised
