MS4182 mounting rail, slot 22 mm, double, A2, perforated

MS4182 mounting rail, slot 22 mm, double, A2, perforated

Type MS4182P3000A2
|
Item no. 1122682
|
EAN 4012195938026
Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Surface
Bright, treated

This item is a discontinued product!

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Heavy-duty Unistrut with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (welded).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
  • CO₂ footprint (PCF)

Technical data

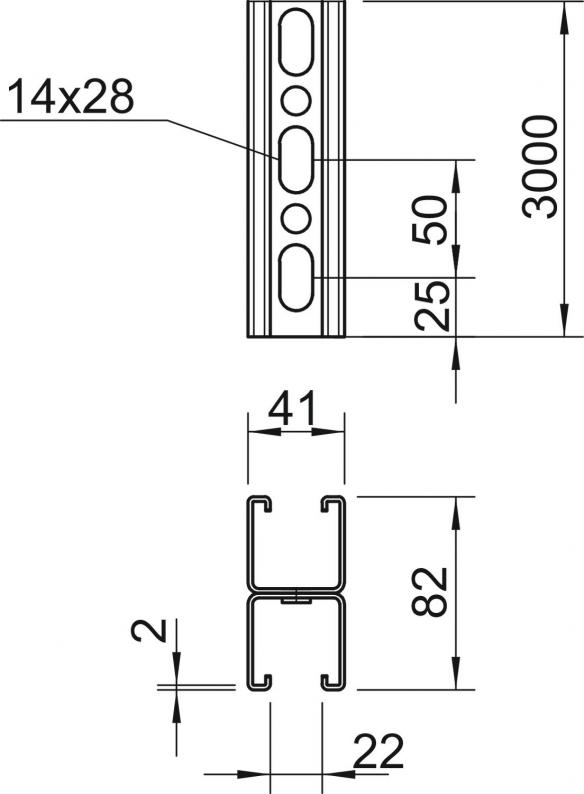

Dimensions

Length3000 mm
Width41 mm
Height82 mm
Dimension L3000 mm

Technical data

Maintain electrical functionsno
Slot width22 mm
Material thickness2 mm
Static value A4,9 cm²
Static value ly30,69 cm⁴
Static value lz15,11 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
Hole size14x28 mm
Profile shapeC profile
Type of perforationPerforated bar
Breakableno
With toothingyes
Version forDouble profile
Dimension3000x41x82
SurfaceBright, treated
MaterialStainless steel 1.4301
CO2 Footprint (GWP) Cradle-to-Gate20,3513 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
Tender specifications (2)

Accessories

System accessories
Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Type
2056U 28 FT

Smallest selling unit: 100 piece

piece

Variants

Length
MS4182P3000A2
Item no.
1122682
Length
3000
Width
41
Height
82
Material thickness
2
Surface
Bright, treated
MS4182P6000A2
Item no.
1122684
Length
6000
Width
41
Height
82
Material thickness
2
Surface
Bright, treated
