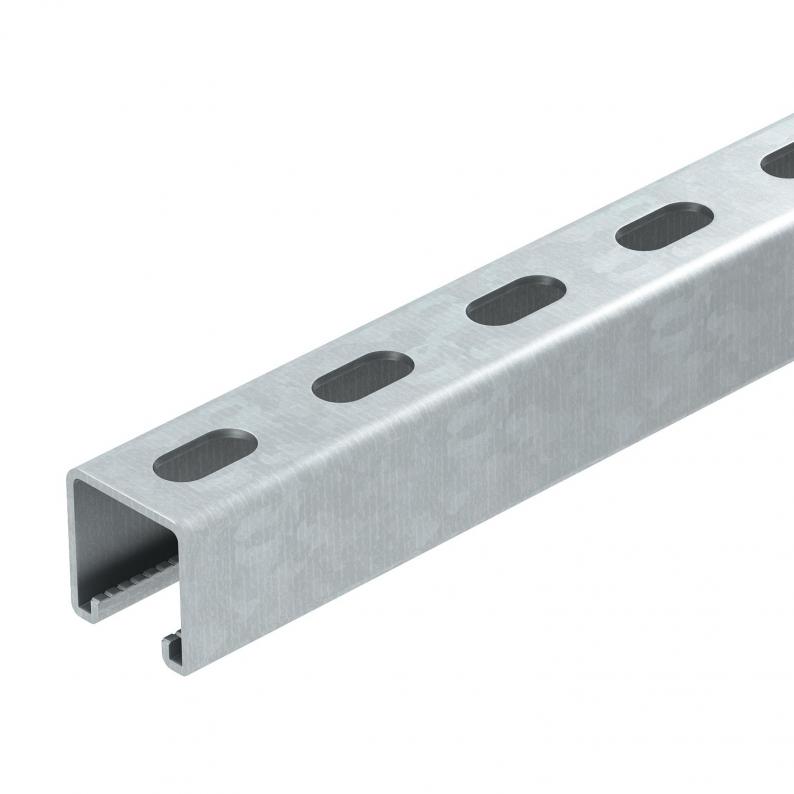

MS4141 mounting rail, slot 22 mm, FT, perforated

MS4141 mounting rail, slot 22 mm, FT, perforated

Type MS4141P3000FT | Item no. 1122622 | EAN 4012195487876

Show all variants
Item no. / Type
1122622 / MS4141P3000FT
Surface
Hot-dip galvanised

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

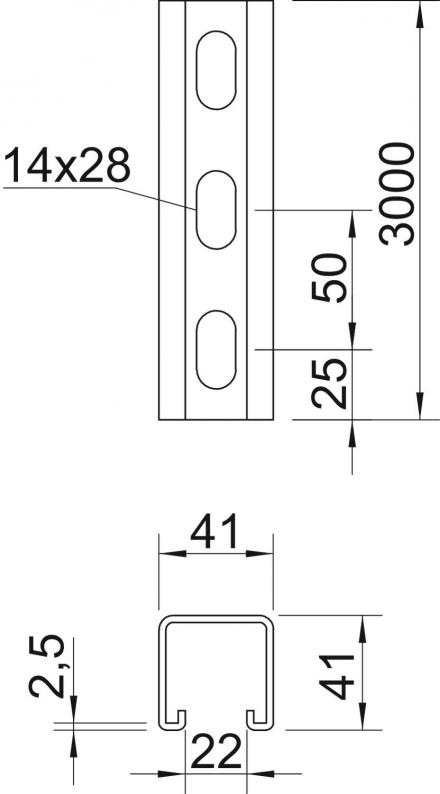

Dimensions

Length3000 mm
Width41 mm
Height41 mm
Dimension L3000 mm

Technical data

Maintain electrical functionsyes
Slot width22 mm
Material thickness2,5 mm
Static value A2,97 cm²
Static value ly6,05 cm⁴
Static value lz9,01 cm⁴
Static value Wy2,91 cm³
Static value Wz4,4 cm³
Hole size14x28 mm
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingyes
Version forSingle profile
Dimension3000x41x41
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate5,3346 kg CO₂e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Type
2056U 12 FT

Smallest selling unit: 100 piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

Type
2056U 28 FT

Smallest selling unit: 100 piece

Variants

MS4141P3000FT
Item no.
1122622
Length
3000
Width
41
Height
41
Material thickness
2,5
Surface
Hot-dip galvanised
