Mounting support ‒ MT2 DBAP2
Type MT2 DBAP2
|Item no. 7428232
|EAN 4012195427711
Item no. / Type
7428232 / MT2 DBAP2
Smallest selling unit: 1 piece
1piece
piece
Description

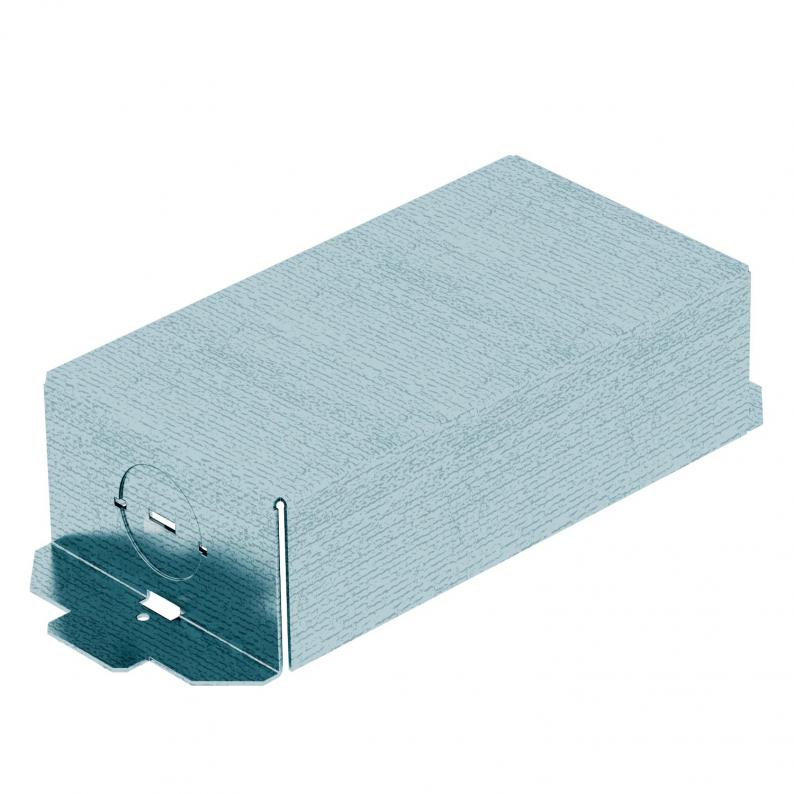

Enclosed mounting support for receiving 1 APMT2 cover plate. The mounting support is fastened below the GES2DB service outlet. Each with 2 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
Technical data
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data

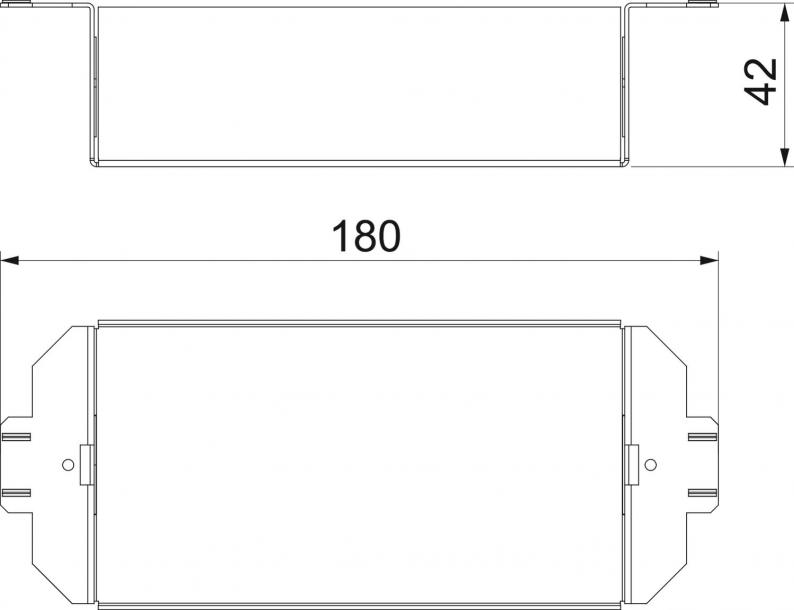

| Dimension | 180x72,5x41 |
|---|---|
| Surface | Strip galvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9434 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Item no.
MT2 DBAP2
7428232
MT2 DBAP2
Item no.
7428232
