Mounting support for GES9
Type MT 9 DB AP 5
|Item no. 7428235
|EAN 4012195415251
Item no. / Type
7428235 / MT 9 DB AP 5
Smallest selling unit: 1 piece
1piece
piece
Description

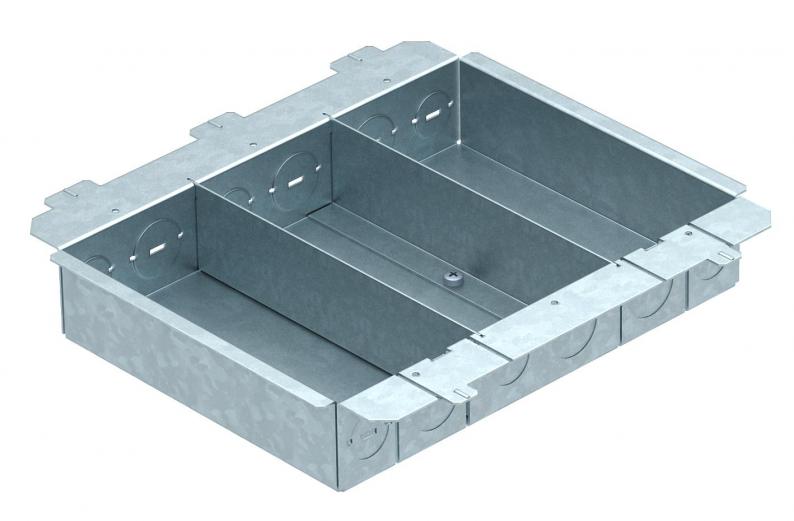

Closed mounting support for receiving 3 APMT5 cover plates. The mounting support is fastened below the GES9DB service outlet. Each with 6 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
Technical data

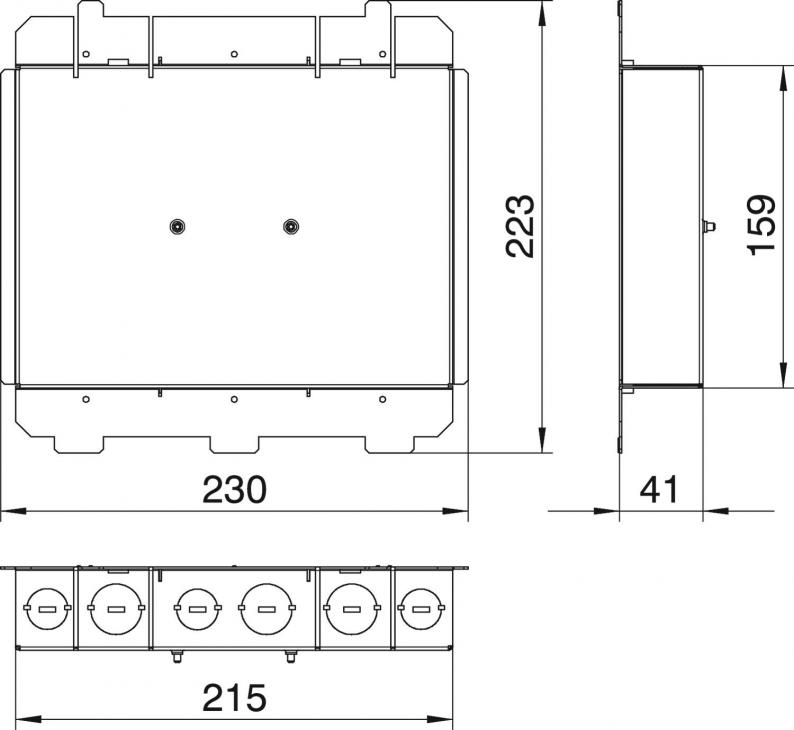

Dimensions
| Length | 230 mm |
|---|---|
| Width | 223 mm |
| Height | 41 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Version for | Support shape |
|---|---|
| Dimension | 230x207x41 |
| Surface | Strip galvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 2,8456 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (2)
