Mounting support for GES6
Type MT 6 DB AP2
|Item no. 7428230
|EAN 4012195298434
Item no. / Type
7428230 / MT 6 DB AP2
Smallest selling unit: 1 piece
1piece
piece
Description

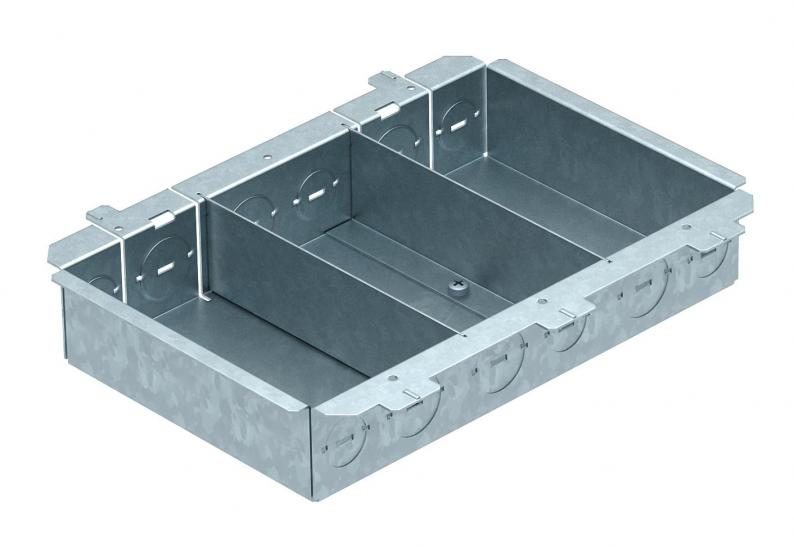

Enclosed mounting support for receiving 3 APMT2 cover plates. The mounting support is fastened below the GES6DB service outlet. Each with 6 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
Technical data

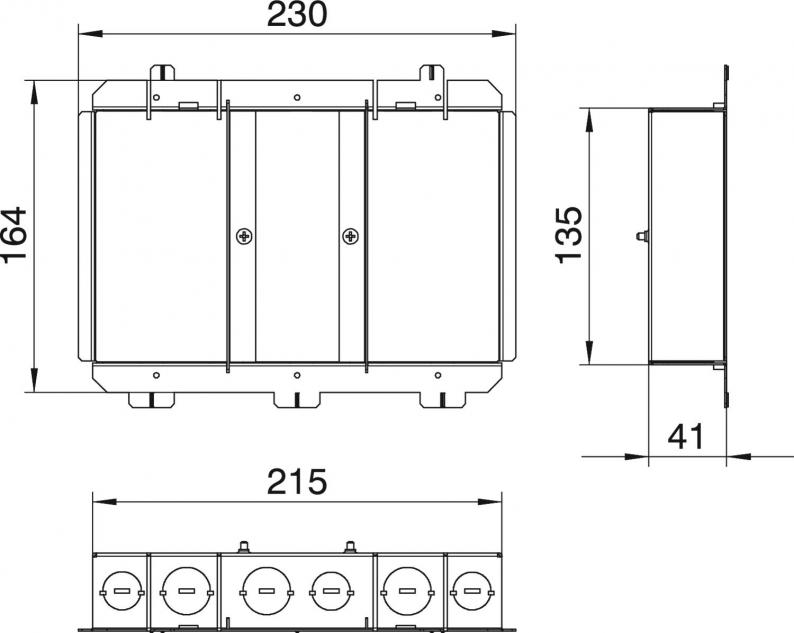

Dimensions
| Length | 230 mm |
|---|---|
| Width | 164 mm |
| Height | 40 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Dimension | 234x164x41 |
|---|---|
| Surface | Strip galvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3821 kg CO2e / 1 Piece |
|---|
