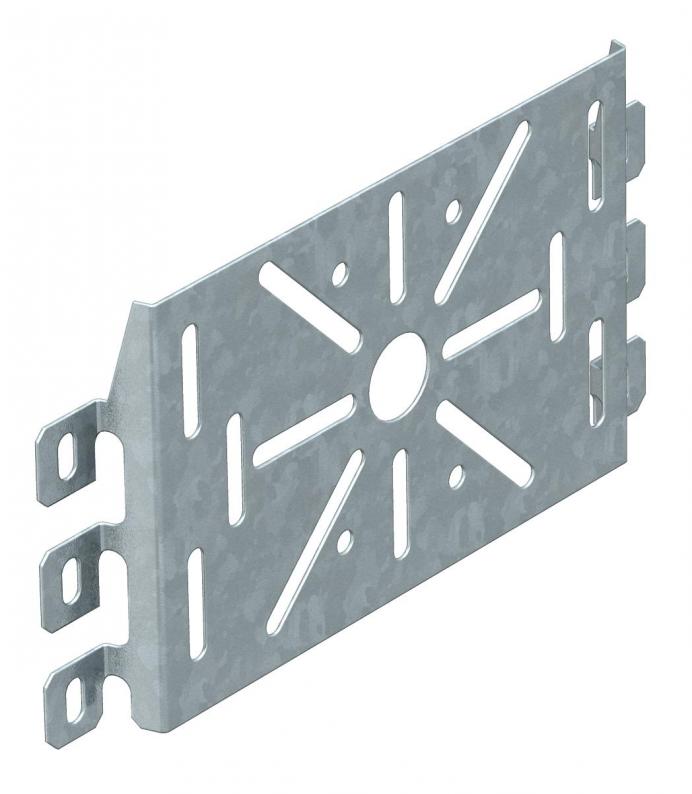

Mounting plate FS
Type MP 225 UNI FS
|Item no. 7084870
|EAN 4012195012245
Item no. / Type
7084870 / MP 225 UNI FS
Width
225 mm
Height
115 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Mounting plate for universal use on side rails of cable trays and mesh cable trays.
Please order the truss-head bolt, type FRSB 6 x 12, separately.
Technical data

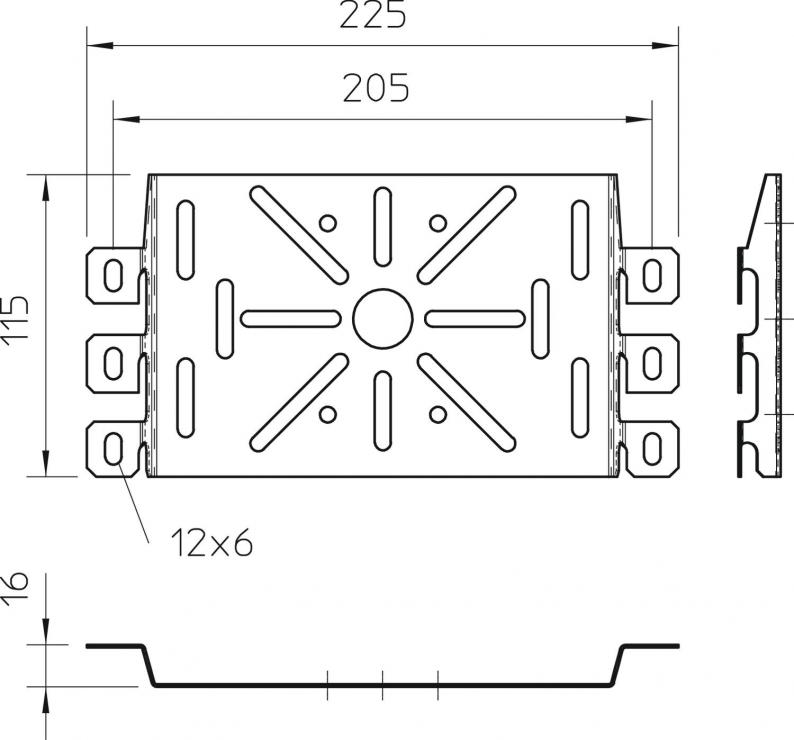

Dimensions
| Width | 225 mm |
|---|---|
| Height | 115 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Horizontal |
| Dimension | 225x115 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,5329 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5329 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
