Mounting plate for FireBox T series
Type MP T616 | Item no. 7205484 | EAN 4012196134977
Item no. / Type
Width
Height
Dimension y
Dimension x
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

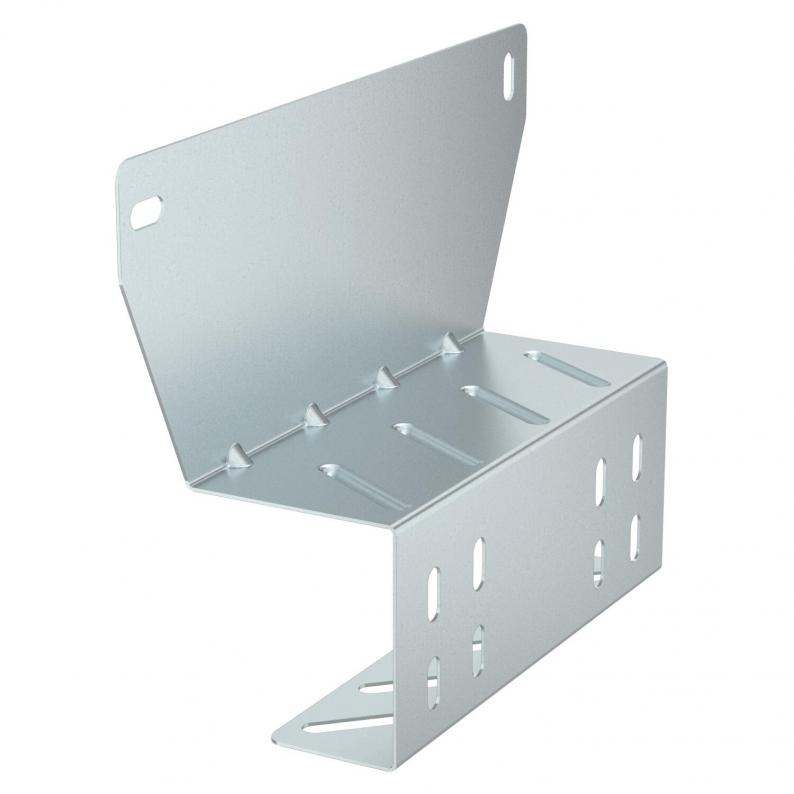

Mounting plate for the fastening of junction boxes of the FireBox T series (with external fastening) onto cable trays or cable ladders with a side height of 60 mm. The angled construction from sheet steel reinforced through crimps enables the secure mounting of cables that maintain electrical functionality, without having to bend the cable over the side rail.
Technical data
Dimensions
| Width | 220 mm |
|---|---|
| Height | 159 mm |
| Dimension y | 165 mm |
| Dimension B | 220 mm |
| Dimension H | 159 mm |
| Dimension x | 63 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Fastening type | Screw fastening |
| Version for | Horizontal |
| Dimension | 220x63x159 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Height
Dimension y
Dimension x
Item no.
MP T616
220
159
165
63
7205484
MP-T6-F
300
182
7205790
MP-T6-B
300
175
7205792
Width
Height
MP T616
Item no.
7205484
Width
220
Height
159
Dimension y
165
Dimension x
63
MP-T6-F
Item no.
7205790
Width
300
Height
182
MP-T6-B
Item no.
7205792
Width
300
Height
175
