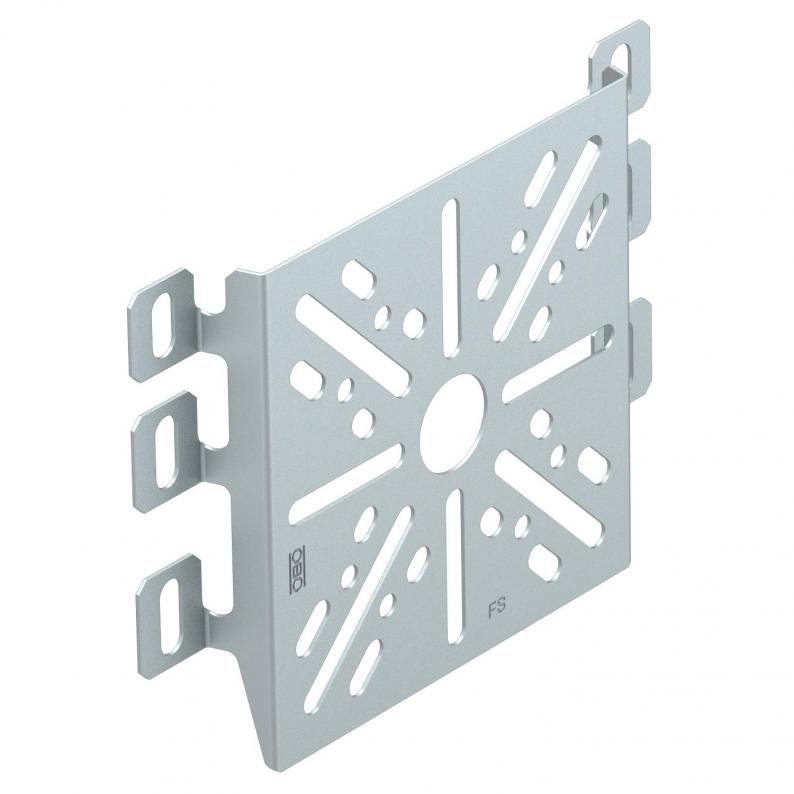

Mounting plate DD
Type MP UNI DD
|Item no. 7085114
|EAN 4012195163312
Item no. / Type
7085114 / MP UNI DD
Smallest selling unit: 1 piece
1piece
piece
Description
Mounting plate, for fastening on the side rail of cable support systems.
Please order the truss-head bolt, type FRSB 6 x 12, separately.
Technical data
Dimensions
| Width | 170 mm |
|---|---|
| Height | 120 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Horizontal |
| Dimension | 170x120 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5825 kg CO2e / 1 Piece |
|---|
