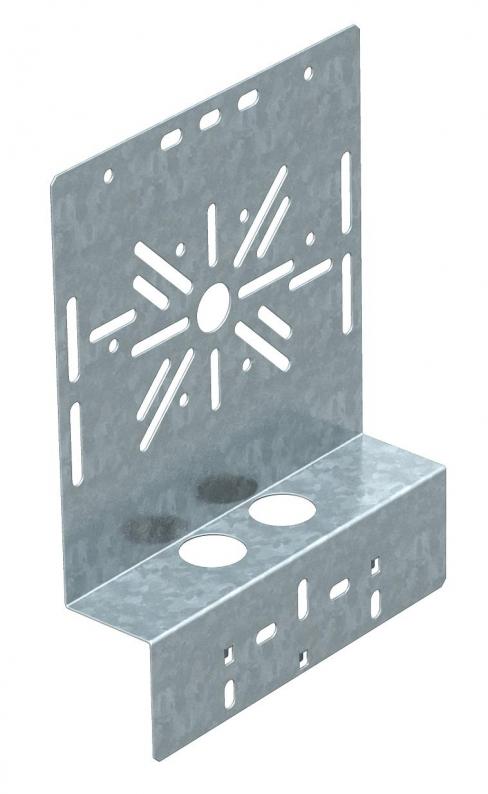

Mounting plate, angled DD
Type MP WI GR. DD
|Item no. 7085112
|EAN 4012195286790
Item no. / Type
7085112 / MP WI GR. DD
Smallest selling unit: 1 piece
1piece
piece
Description
Angled mounting plate, for fastening on the side rail of the cable tray.
Please order the truss-head bolt, type FRS B6 x 12, separately.
Technical data

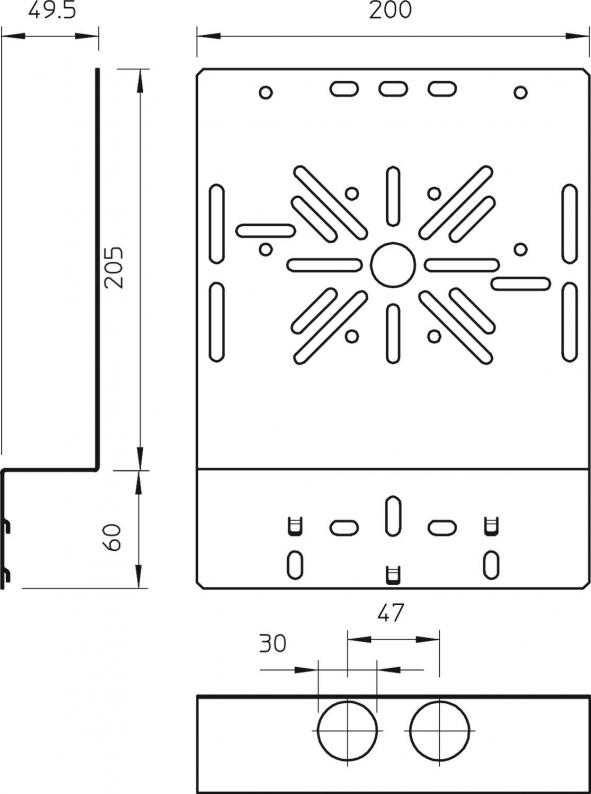

Dimensions
| Width | 200 mm |
|---|---|
| Height | 240 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Vertical |
| Dimension | 265x200 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4423 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 2007831
Fastening pin for mounting platesType
T-S MST
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
Height
Item no.
MP WI GR. DD
200
240
7085112
MP WI GR. DD
Item no.
7085112
Width
200
Height
240
