Mounting lid 250, nominal size 2
Type DUG 250-3 2
|Item no. 7400455
|EAN 4012195431220
Item no. / Type
7400455 / DUG 250-3 2
Mounting opening
Rectangular
Smallest selling unit: 1 piece
1piece
piece
Description

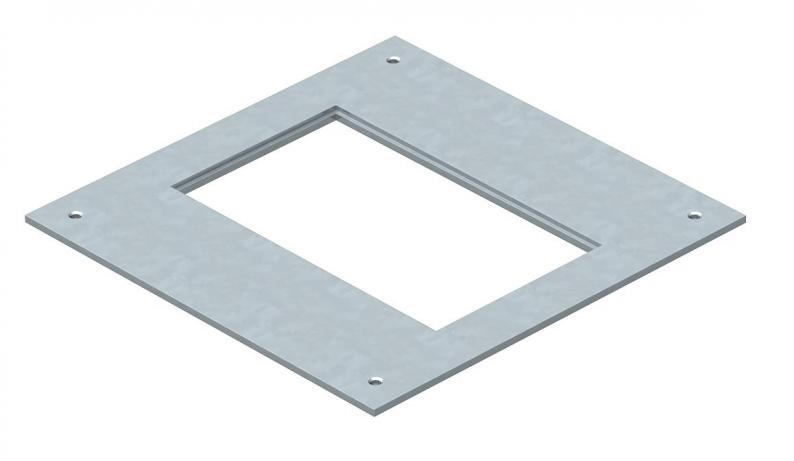

Mounting lid for underfloor junction and branch box of type UZD250-3/4 for the installation of an installation unit of nominal size 2. Installation opening 3 mm recessed for later blanking lock with lid blind plate.
Technical data

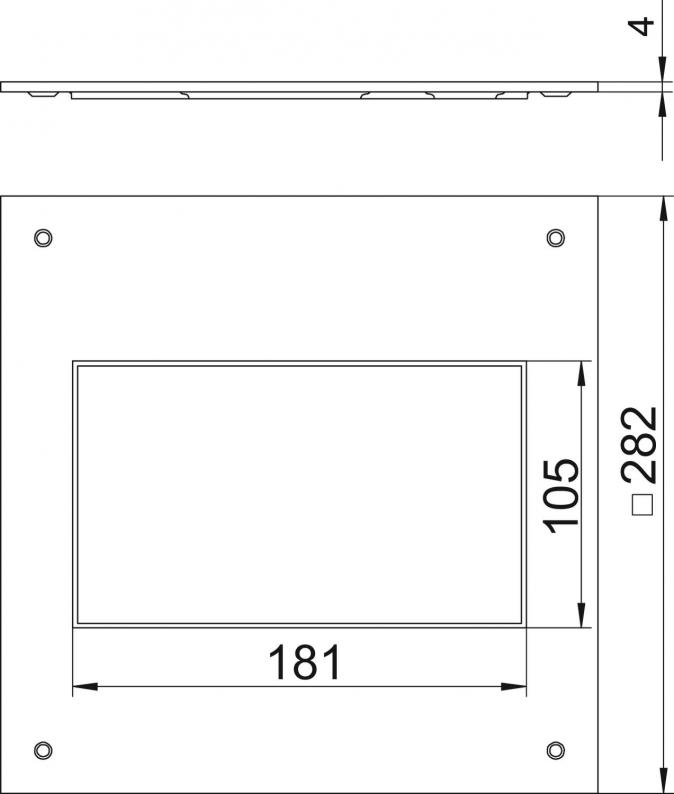

Dimensions
| Length | 282 mm |
|---|---|
| Width | 282 mm |
| Height | 4 mm |
| Dimension A | 282 mm |
| Dimension b | 181 mm |
| Dimension a | 105 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Mounting opening cover | yes |
| Heavy-duty version | no |
| Nominal size for device installation units | 2 |
| Nominal size | 250 mm |
| Mounting opening | Rectangular |
| Dimension | 282x282x4 |
| Surface | Strip galvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 5,6054 kg CO2e / 1 Piece |
|---|
