Mounting/branch piece 60 A4
Type RAA 650 A4 | Item no. 7136252 | EAN 4012195866756
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

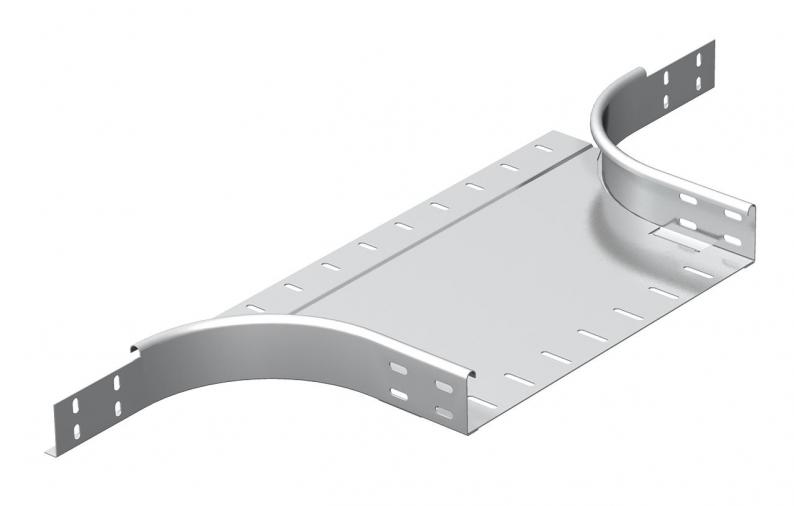

Add-on tee for horizontal and vertical use. For all cable tray types of 60 mm side height.
Fastening materials should be ordered separately.
Technical data

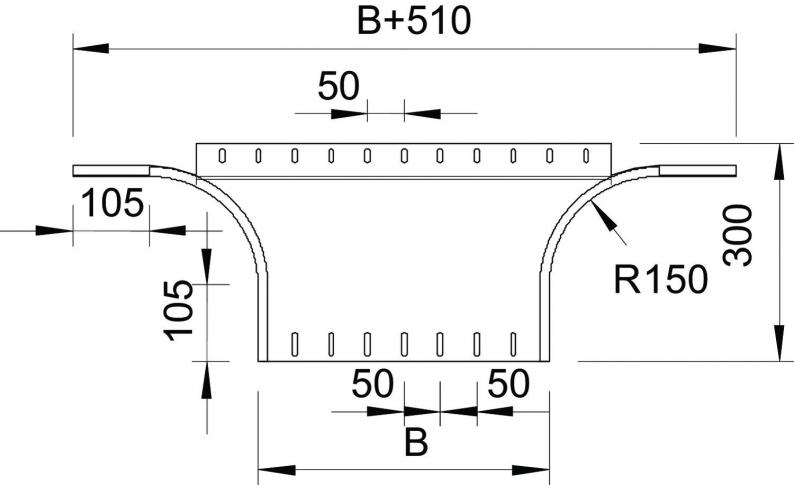

Dimensions
| Width | 500 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 500 mm |
| Dimension R | 150 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Material thickness, floor plate | 1,5 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x500 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
RAA 650 A4
500
7136252
RAA 660 A4
600
7136271
Width
RAA 650 A4
Item no.
7136252
Width
500
RAA 660 A4
Item no.
7136271
Width
600
