Mounting/branch piece 60 A4
Type RAA 620 A4 | Item no. 7136135 | EAN 4012195866695
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

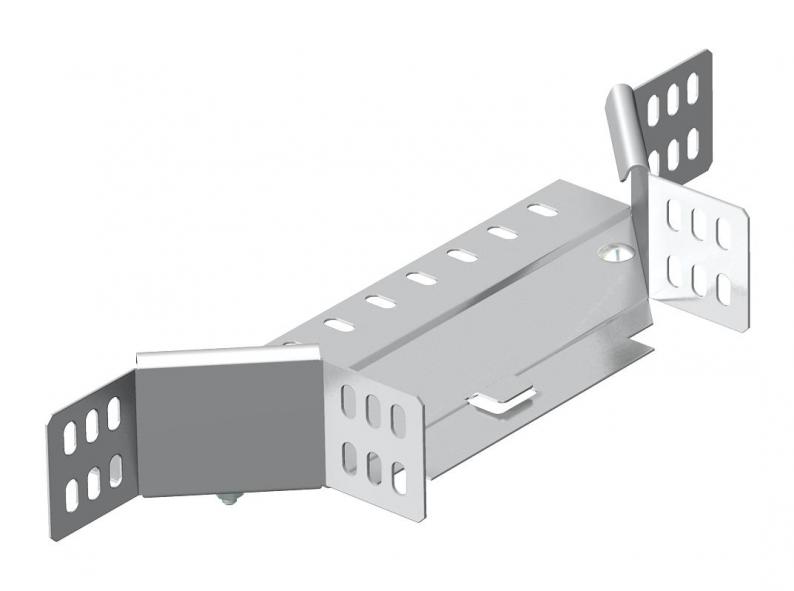

Add-on tee for horizontal and vertical use. For all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

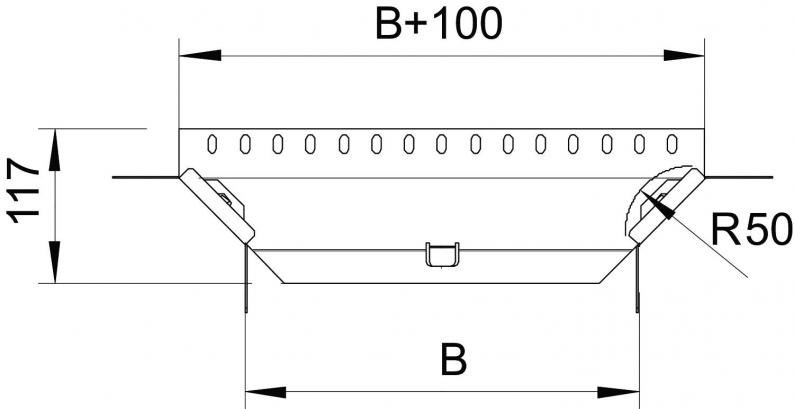

Dimensions
| Width | 200 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 200 mm |
| Dimension R | 50 mm |
Technical data
| Connector version | Supplied connectors |
|---|---|
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x200 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
RAA 610 A4
100
7136122
RAA 620 A4
200
7136135
RAA 630 A4
300
7136143
Width
RAA 610 A4
Item no.
7136122
Width
100
RAA 620 A4
Item no.
7136135
Width
200
RAA 630 A4
Item no.
7136143
Width
300
