Montageplatte, angled DD
Type MP WI KL. DD | Item no. 7085111 | EAN 4012195163305
Item no. / Type
7085111 / MP WI KL. DD
Smallest selling unit: 1 piece
1piece
Description
Angled mounting plate, for fastening on the side rail of the cable tray.
Type B9/T junction boxes can be mounted very easily by inserting the plug supplied into the centre hole on the mounting plate.
Marked shackles provide rapid fixing.
Please order the fixing bolt, type FRS B6 x 12, separately.
Technical data

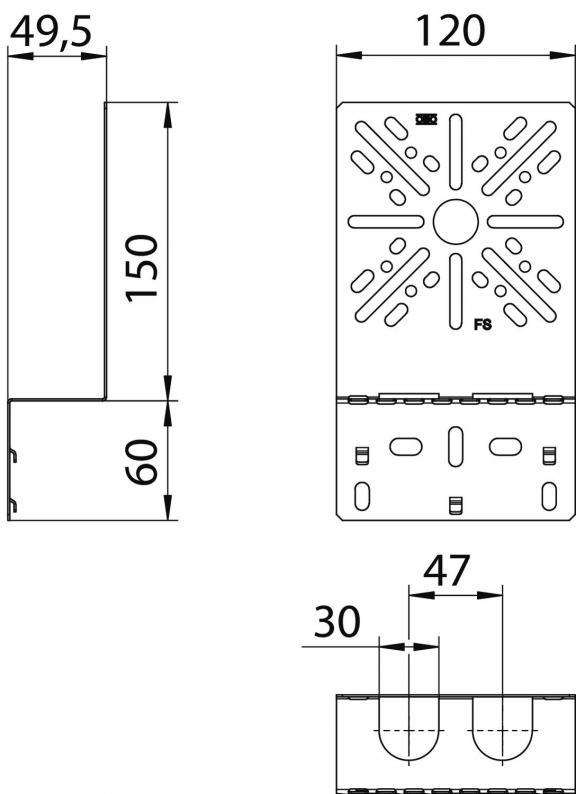

Dimensions
| Width | 120 mm |
|---|---|
| Height | 210 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Vertical |
| Dimension | 210x120 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5549 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 2007831
Fastening pin for mounting platesType
T-S MST
Smallest selling unit: 100 piece
100piece
