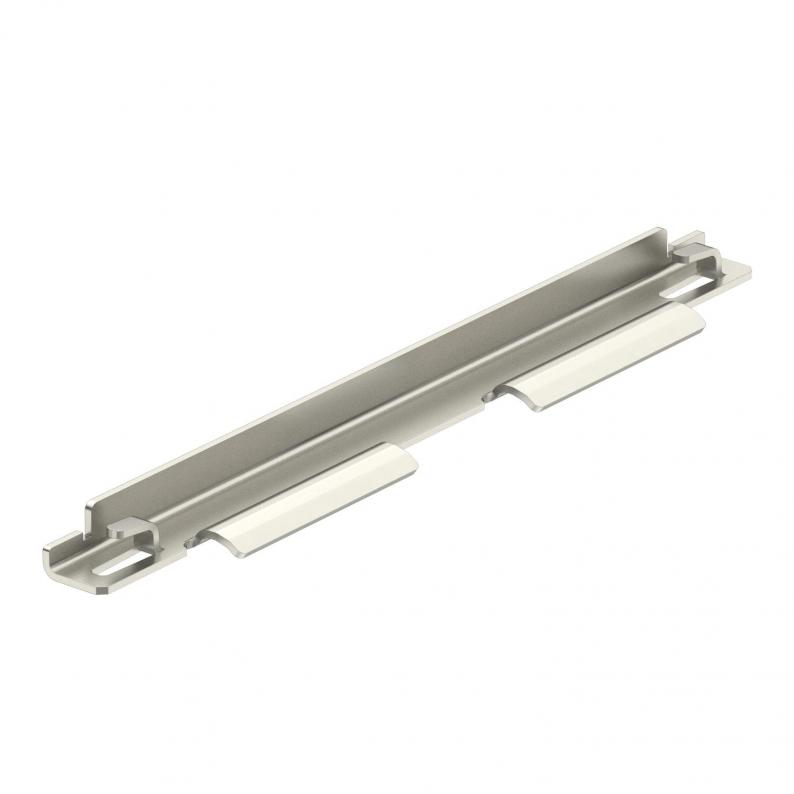

Mesh cable tray connector, long A4
Type GRV 245 A4 | Item no. 6016688 | EAN 4012196054312
Item no. / Type
6016688 / GRV 245 A4
Surface
Bright, treated
Material
Stainless steel 1.4404
Smallest selling unit: 20 piece
20piece
Description
Long mesh cable tray connection for screwless straight connection of mesh cable trays.
Two straight connectors, type GRV 245, are used for each connection point.
Can be used from a mesh cable tray width of 100 mm.
The FS variant is used to connect electrogalvanised mesh cable trays, the DD variant to connect hot/hot-dip galvanised mesh cable trays and the VA variant to connect stainless steel mesh cable trays.
Technical data

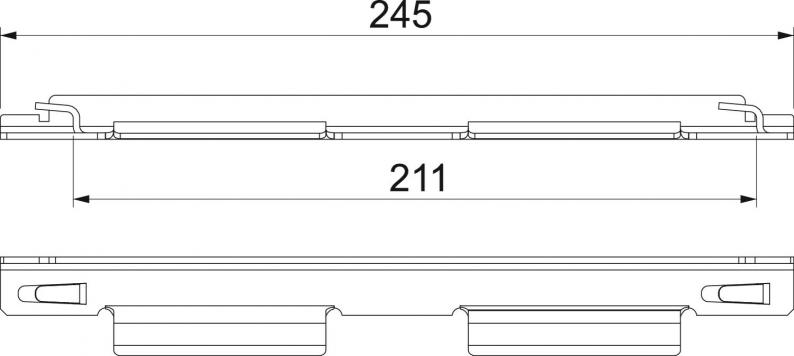

Dimensions
| Length | 245 mm |
|---|---|
| Width | 30 mm |
| Height | 14 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 245 x 30 |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Dimension | L245mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4404 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8642 kg CO2e / 1 Piece |
