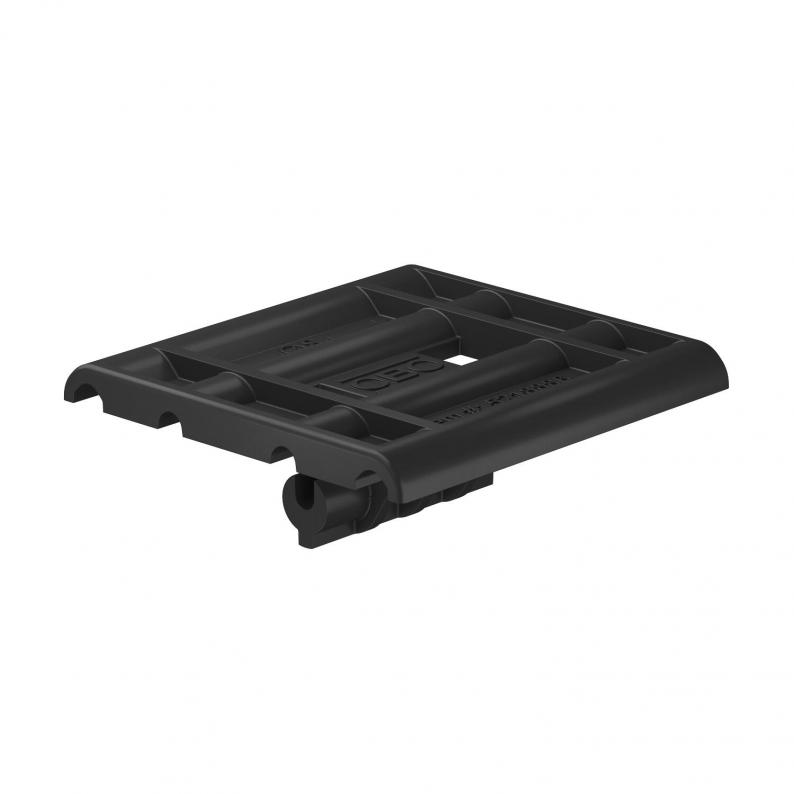

Mesh cable tray adapter for roof conductor holder
Type 165 MBG HGRM | Item no. 5218886 | EAN 4012196991921
Item no. / Type
5218886 / 165 MBG HGRM
Smallest selling unit: 50 piece
50piece
Description
• Adapter for GR-Magic® mesh cable trays with a mesh width of 50 mm or 20 mm
• For fastening to type 165 MBG 8-10 and UniBase
• Mounting without tools
• From polypropylene, black, UV-resistant and weatherproof
• Toolless installation
• For fastening to type 165 MBG 8-10 and UniBase
• Mounting without tools
• From polypropylene, black, UV-resistant and weatherproof
• Toolless installation
Technical data

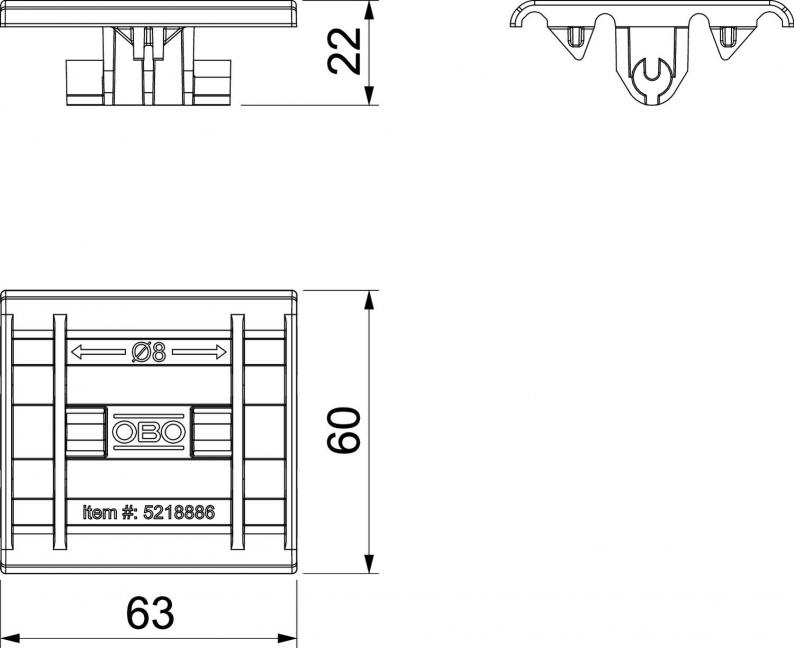

Dimensions
| Length | 63 mm |
|---|---|
| Width | 60,3 mm |
| Height | 22,3 mm |
Technical data
| Conductor diameter, max. | 8 |
|---|---|
| Conductor diameter, min. | 8 |
| Fit | Rd 8 mm |
| Dimension | 3,9-4,8 |
| Material | Polypropylene |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0505 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Fit
Item no.
165 MBG HGRM
Rd 8
5218886
165 MBG HGRM
Item no.
5218886
Fit
Rd 8
