Mesh angle
Type GW 40 80 FT | Item no. 6003818 | EAN 4012196002955
Item no. / Type
6003818 / GW 40 80 FT
Smallest selling unit: 2 m
2m
Description

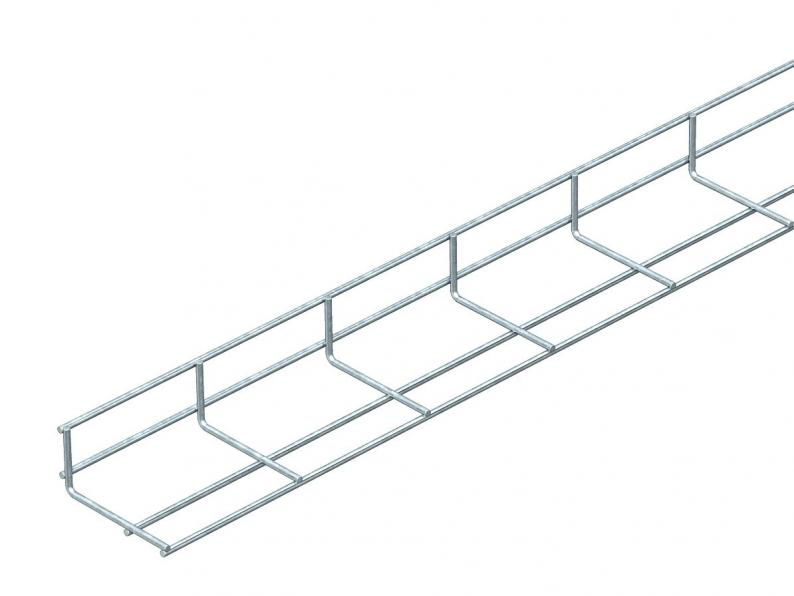

Mesh angle for routing cables in steel girders.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 40 mm |
| Height | 80 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Wide-span version | no |
| Usable cross-section | 32 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 3200 mm² |
| Integrated partition | Without |
| Wire diameter | 4,4 mm |
| Dimension | 80x40x2000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4001 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Usable cross-section
Wire diameter
Item no.
GW 40 80 FT
2000
40
80
32
4,4
6003818
GW 40 80 FT
Item no.
6003818
Length
2000
Width
40
Height
80
Usable cross-section
32
Wire diameter
4,4
