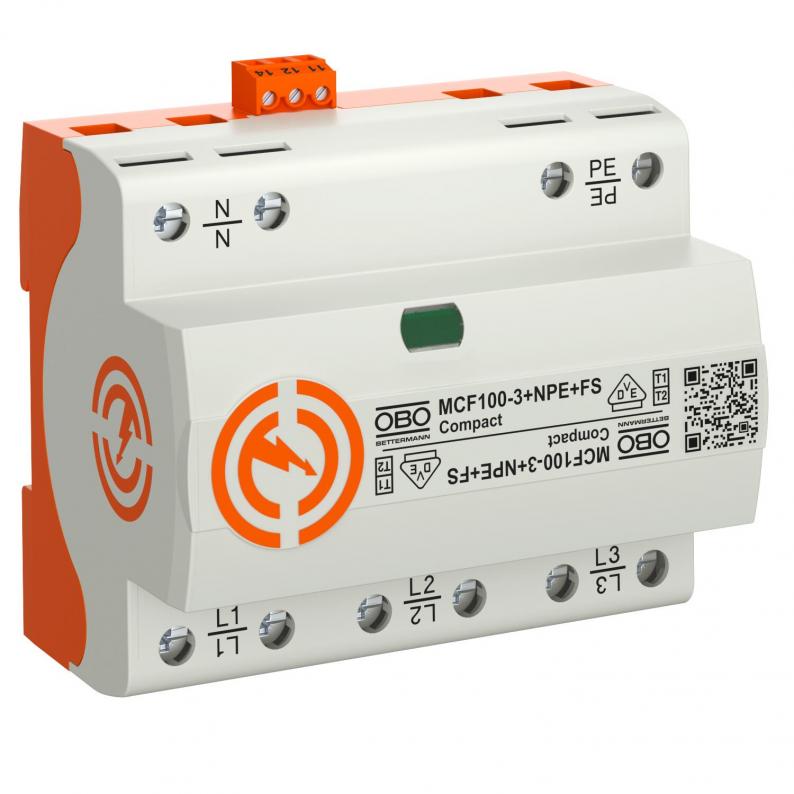

LightningController Compact - MCF100

LightningController Compact - MCF100

Type MCF100-3+NPE+FS
|
Item no. 5096987
|
EAN 4012196487332
Show all variants
Item no. / Type
5096987 / MCF100-3+NPE+FS
Protection rating
IP20
Remote signalling
yes
Pole version
3+N/PE

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Combination arrester, lightning current and surge arrester, type 1+2

• Protection level ≤ 1.5 kV
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity up to 100 kA (10/350), 3+NPE
• Line following current quenching 50 kA Ipeak, arrester backup fuse to 315 A gL/gG
• Fulfils the requirements of VDE-AR-N 4100 for use in pre-meter area
• Encapsulated, non-extinguishing spark gap arrester for use in distributor housings

Application: Industrial systems and buildings with external lightning protection of the highest class I to IV.
Compact protection device
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Regulatory Compliance Mark – Declaration of Conformity for Australia/New Zealand
  • 230/400 V system
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Remote signalling
  • Halogen-free; without chlorine, fluorine and bromine
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

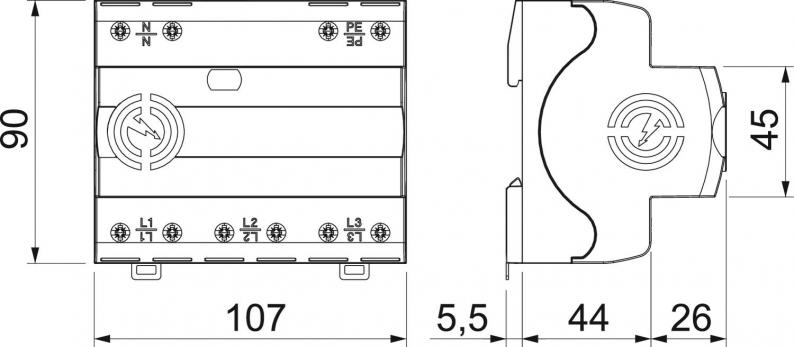

Dimensions

Length90 mm
Width107 mm
Height70 mm

Materials and Packaging

Packaging without plasticyes

Technical data

Pole number4
Network formTT
Signalling on deviceVisual
Protection ratingIP20
Maximum continuous voltage (L-N)255 V
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [L-N]35 kA
Nominal discharge current (8/20 µs) [N-PE]100 kA
Lightning surge current (10/350)100 kA
Housing material surge protection componentsPA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]50 kA
Maximum discharge current (8/20 μs) [N-PE]100 kA
Remote signallingyes
Nominal voltage AC (50/60 Hz)230 V
Lightning surge current (10/350 μs)25 kA
Protection level [L-N]≤1,5
Maximum continuous voltage AC255 V
Nominal discharge current (8/20 µs)35 kA
Pole version3+N/PE
Installation typeDIN rail 35 mm
Max. mains-side overcurrent protection315 A
Switching power AC250V/ 1,5A
Switching power DC250V/ 0,1A
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
TOV voltage [L-N] ‒ withstand mode ‒ 5 s440 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.442 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance0 mm
ApprovalsVDE, UL
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
Torque5 Nm
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Maximum discharge current (8/20 μs)50 kA
Follow current quenching capacity (eff) [N-PE]50 kA
Response time<100 ns
Maximum back-up fuse315 A
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension255V
Humidity, max.95 %
Humidity, min.5 %

Connectivity options

Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, flexible (fine-wire), max.25 mm²
FM contactsChangeover
Connection cross-section, FM terminals, min.0,5 mm²
Connection cross-section, FM terminals, max.1,5 mm²
Connection cross-section, FM terminals, min.28 AWG
Connection cross-section, FM terminals, max.16 AWG
Arrester surge current (8/20 µs) [total]100 kA
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, flexible (fine-wire), max.3 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Combined voltage protection level [L-PE]2,5 kV

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate4,7534 kg CO2e / 1 Piece
