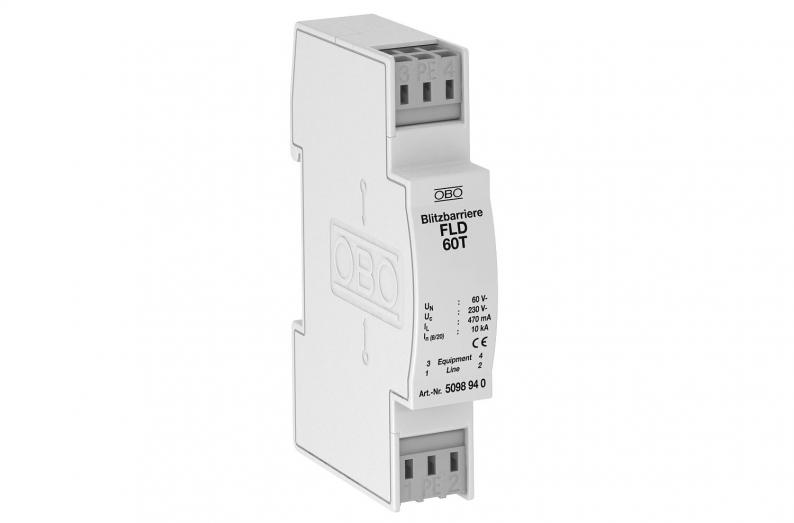

Lightning barrier FLD
Type FLD 60T S | Item no. 5098940 | EAN 4012195578567
Item no. / Type
5098940 / FLD 60T S
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description
The type VF FLD 60T S lightning barrier is a surge arrester/fine power protection type 3 to DIN EN 61643-11 for protecting end devices from transient surge voltages.
The protection devices are used for mounting on DIN profile rails near to devices to be protected and are designed for DC and AC systems.
The protection devices are used for mounting on DIN profile rails near to devices to be protected and are designed for DC and AC systems.
Technical data
Technical data
| Network form | Other |
|---|---|
| Signalling on device | Without |
| Protection level wire-wire | <300 V |
| Protection level wire-earth | <500 V |
| Protection rating | IP20 |
| Explosion-tested version | no |
| Remote signalling | no |
| Nominal voltage AC (50/60 Hz) | 60 V |
| Maximum continuous voltage AC | 160 V |
| Maximum continuous voltage DC | 230 V |
| Nominal discharge current (8/20 µs) | 10 kA |
| Installation type | DIN rail 35 mm |
| OBO_Nominal load current (input/output terminal) | 0,47 A |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Lightning protection zone LPZ | 2→3 |
| Response time | <1 ns |
| Inductivity | 100 μH |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 230V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1438 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,14 mm² |
|---|
