K connector
Type 101 IK | Item no. 5408296 | EAN 4012195895879
Item no. / Type
Dimension L
Dimension d Ø
Dimension d min.
Smallest selling unit: 10 piece
10piece
Description

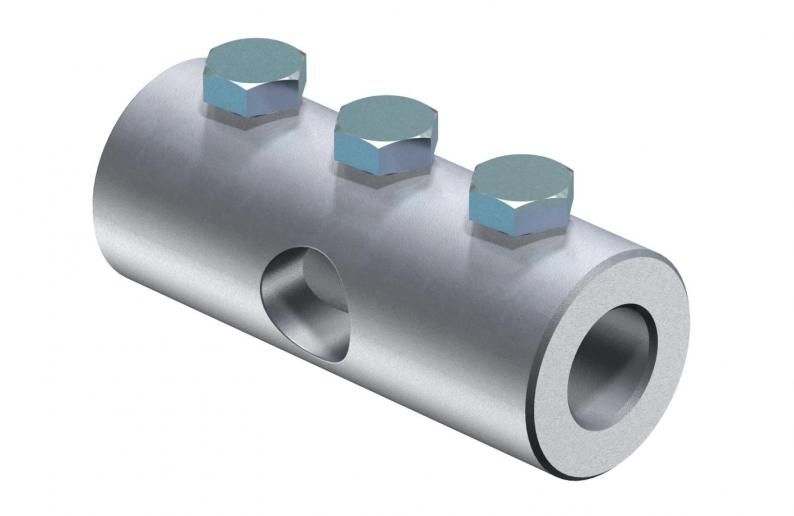

• K connector for installation of insulating rods
• With M10 bolts
• With M10 bolts
Technical data

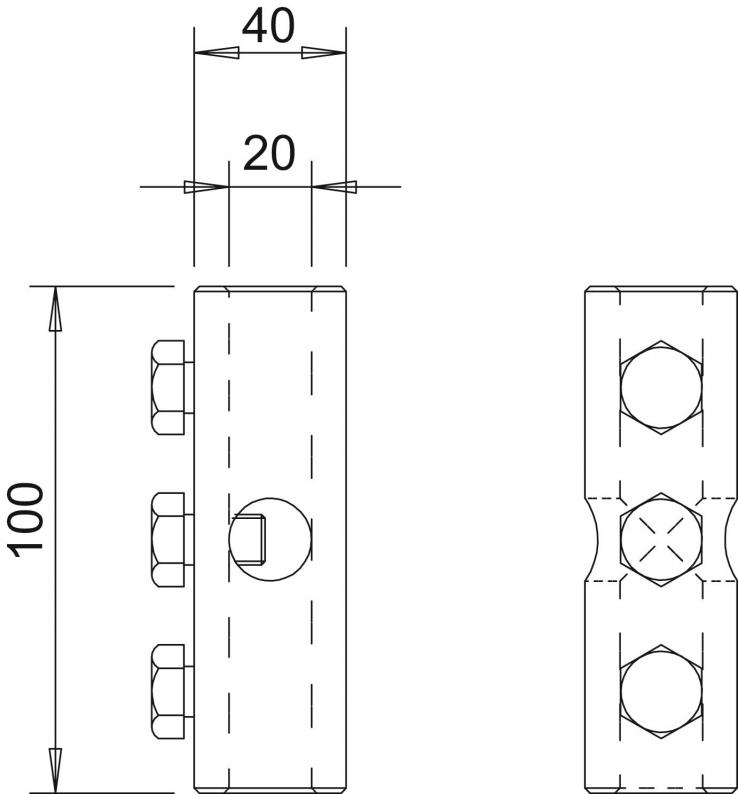

Dimensions
| Length | 100 mm |
|---|---|
| Dimension L | 100 mm |
| Dimension d Ø | 20 mm |
| Dimension d min. | 40 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Dimension | 20mm |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,5482 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension d Ø
Dimension d min.
Item no.
101 IK
100
20
40
5408296
101 IK-16
100
16
30
5408298
Dimension d Ø
Dimension d min.
101 IK
Item no.
5408296
Dimension L
100
Dimension d Ø
20
Dimension d min.
40
101 IK-16
Item no.
5408298
Dimension L
100
Dimension d Ø
16
Dimension d min.
30
