Junction box T 40, plug-in seal

Junction box T 40, plug-in seal

Type T 40 SW
|
Item no. 2007464
|
EAN 4012197354565
Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
7
Protection rating
IP56

Smallest selling unit: 5 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Square design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside. With fixed clamping cover. Made from halogen-free, UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • M25 entry
  • Nominal cross-section 4 mm²
  • 7 cable entries
  • gas-/battery-actuated setting tool
  • Nominal voltage 500 V
  • IK Code 07
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

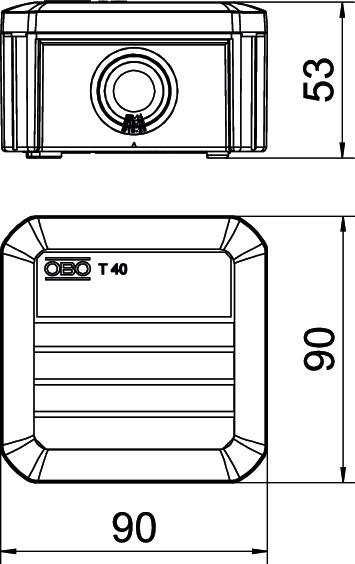

Dimensions

Length90 mm
Width90 mm
Height52 mm
Clear internal dimensions77x77x46 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP56
Nominal voltage500 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.4 mm²
ShapeSquare
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension90x90x52
MaterialPolypropylene
ColourGraphite black; RAL 9011

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,2733 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
T 40 SW
Item no.
2007464
Clear internal dimensions
77x77x46
No. of entries
7
Protection rating
IP56
Colour
Graphite black; RAL 9011
T 40 KL
Item no.
2007432
Clear internal dimensions
77x77x46
No. of entries
7
Protection rating
IP56
Colour
Light grey; RAL 7035
