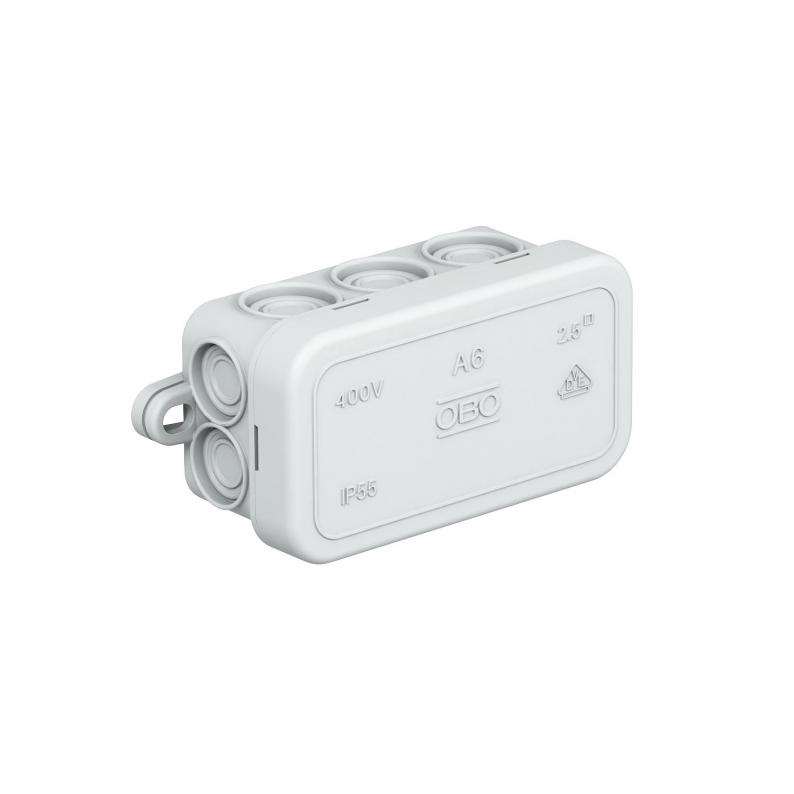

Junction box A 6

Junction box A 6

Type A 6
|
Item no. 2000001
|
EAN 4012195917069
Show all variants
Item no. / Type
2000001 / A 6
No. of entries
10
Protection rating
IP55
Colour
Light grey; RAL 7035

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Protection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 6 entries for cable diameter 5‒14 mm

4 entries for cable diameter 5–9 mm.

Clamshell.

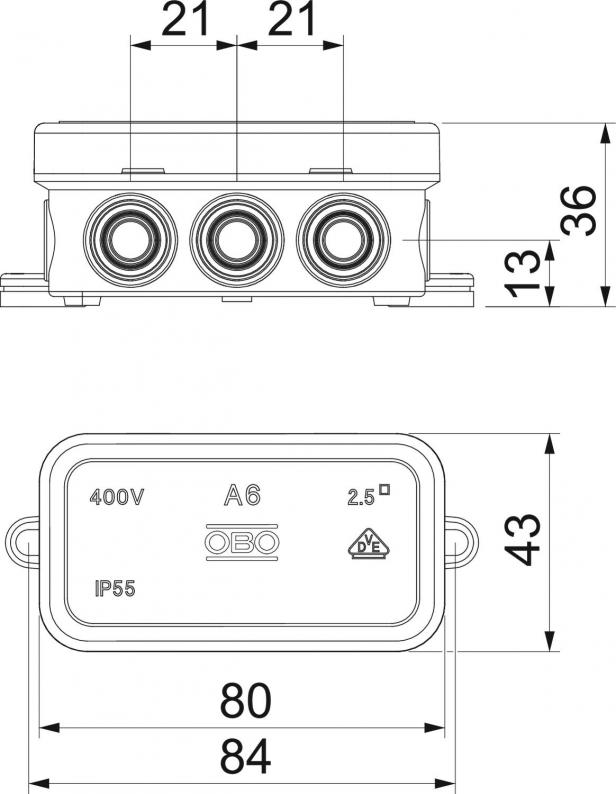

Dimensions: 80 x 43 x 36 mm

Clear internal dimensions: 69 x 32 x 30 mm

1 cut-out tool for every 10 boxes
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • IK Code 07
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 55
  • Nominal cross-section 2.5 mm²
  • 10 cable entries ECO
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length80 mm
Width43 mm
Height36 mm
Clear internal dimensions69x32x30 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Type of entryCable
Halogen-freeyes
No. of entries10
Entry from rearno
Transparent lidno
Protection ratingIP55
Nominal voltage690 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi690 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
For Ex zone gasWithout
For Ex zone dustWithout
Max. Conductor cross-section2,5 mm²
Nominal cross-section, min.2,5 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.45 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension80x43x34
MaterialPolyethylene
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,0689 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

A 6
Item no.
2000001
Clear internal dimensions
69x32x30
No. of entries
10
Protection rating
IP55
Colour
Light grey; RAL 7035
