Joint cover, trunking height 90 mm
Type G-SVS90210RW
|Item no. 6279788
|EAN 4012195667940
Item no. / Type
6279788 / G-SVS90210RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
translation missing
Description

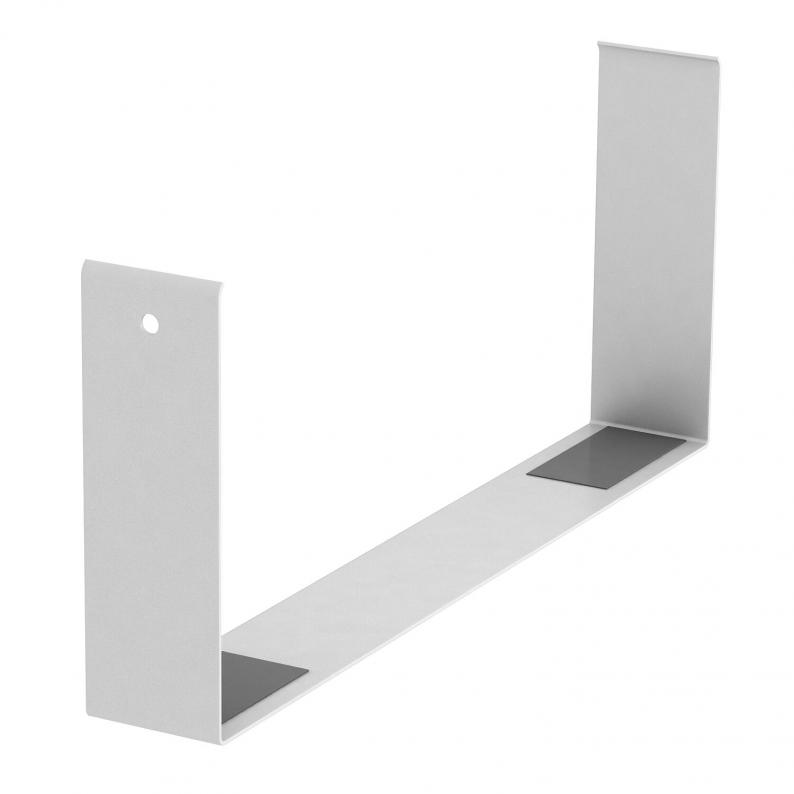

Joint cover to hide sawn trunking joint edges.
Technical data

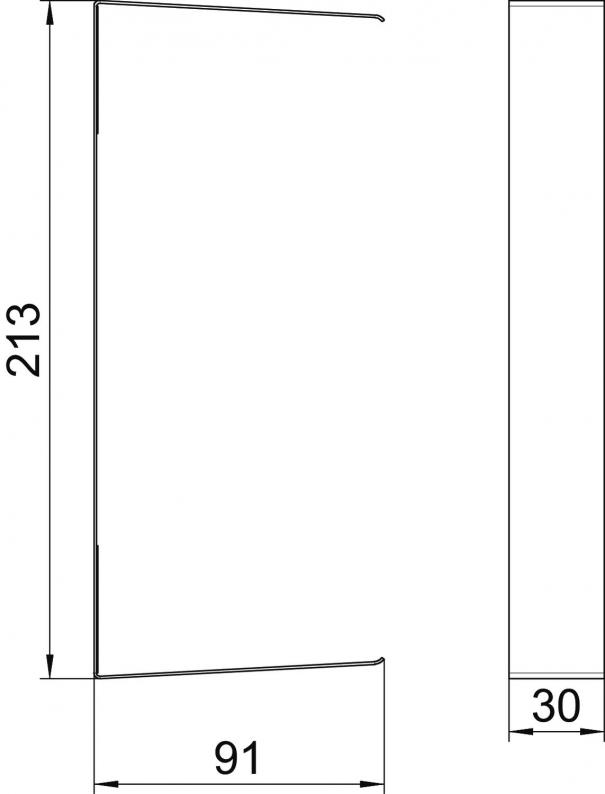

Dimensions
| Length | 30 mm |
|---|---|
| Width | 213 mm |
| Height | 91 mm |
Technical data
| for duct dimension | 90x210 |
|---|---|
| Halogen-free | yes |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| for duct width | 210 mm |
| for trunking height | 90 mm |
| Shape | Universal |
| Version for | Trunking cut cover |
| Fastening type | Self-adhesive |
| Cover width | 76,5 mm |
| Trunking depth | 90 mm |
| Duct height, min. | 90 mm |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 90x210x30mm |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3715 kg CO2e / 1 Piece |
