isFang, insulated air-termination rod for inner-routed isCon® conductor Professional Plus

isFang, insulated air-termination rod for inner-routed isCon® conductor Professional Plus

Type isFang IN 4000
|
Item no. 5408934
|
EAN 4012195871613
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

• For installation of the OBO isCon® Pro+ conductor in the pipe

• For mounting on the building structure with isFang support

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

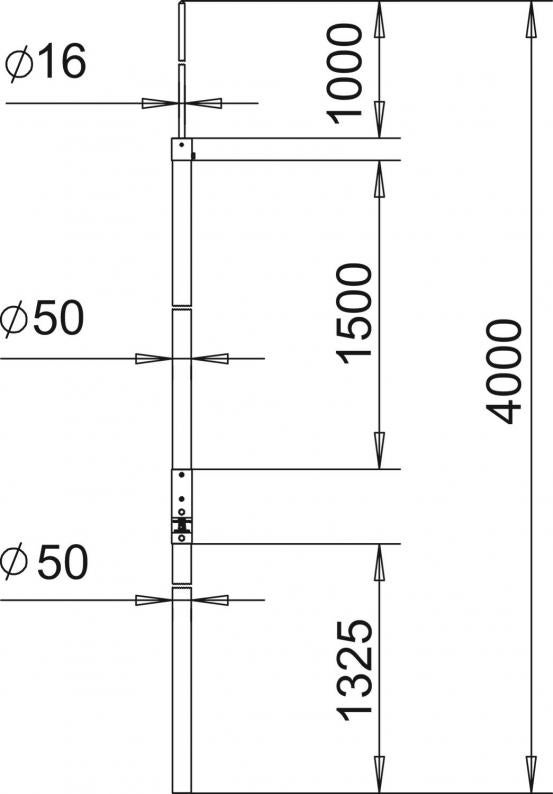

Dimensions

Length4000 mm
Dimension L4000 mm
Dimension A1325 mm
Dimension B1000 mm
Dimension H1500 mm
Dimension d min.50 mm

Technical data

Diameter50 mm
High voltage-resistant, insulated versionyes
ConnectionRound conductor
Version forAir-termination rod
Dimension4000mm
MaterialFibre-glass-reinforced plastic
Product seriesISCON

Environmental Data

52,3752 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate52,3752 kg CO2e / 1 Piece
CO₂ Footprint (GWP)52,3752 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Length
isFang IN 8000
Item no.
5408868
Length
8000
isFang IN 10000
Item no.
5408870
Length
10000
isFang IN 4000
Item no.
5408934
Length
4000
isFang IN 6000
Item no.
5408936
Length
6000
