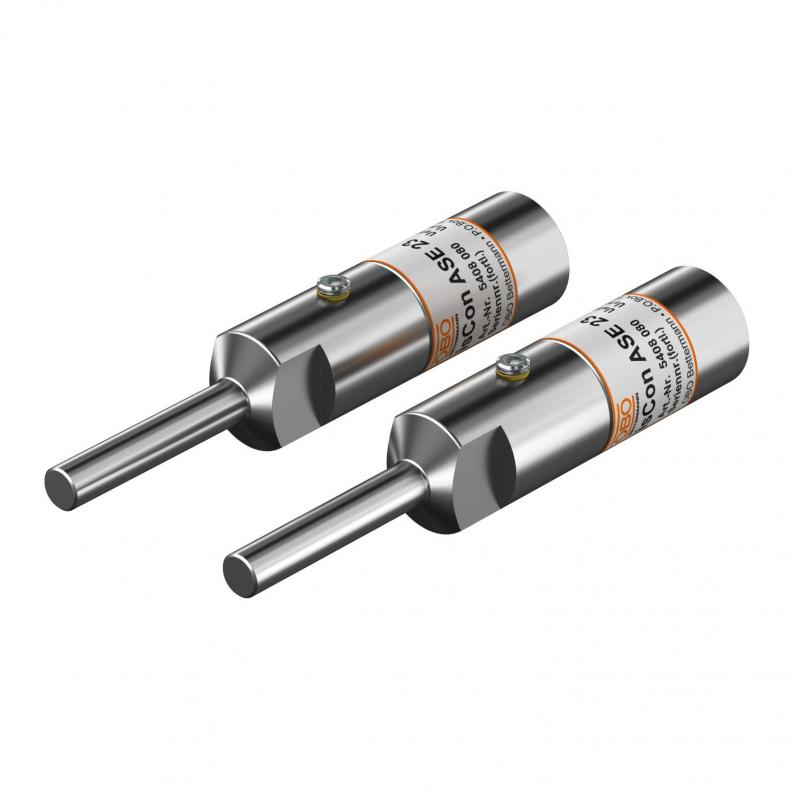

isCon® connection element set ASE, testable

Type isCon ASE 23 | Item no. 5408080 | EAN 4012196876594

Item no. / Type
5408080 / isCon ASE 23

Smallest selling unit: 1 piece

Description

• For the isCon® Pro+ and Premium conductor
• Set consisting of 2 testable connection elements
• For function and state determination with integrated ASE technology (Adaptive Switching Element)
• For comprehensive repeat testing according to VDE 0185-305-3 (IEC/EN 62305-3)
• Screw-on termination
• Testable with the simplest insulation measuring devices (≥ 1 kV DC)
• Can be used in all lightning protection classes
• For highest system availability - no switch-off, dismantling or testing with
dangerous pulse voltages
• QR code to open the test report
• Incl. heat-shrinkable hose and Allen key




  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Type of fastening screwMiscellaneous
Type of connectorConnectors
ConnectionRound conductor
Fit23 mm
Dimension23mm
MaterialStainless steel 1.4301
Clamping range, max.23 mm
CO2 Footprint (GWP) Cradle-to-Gate4,5207 kg CO2e / 1 Piece

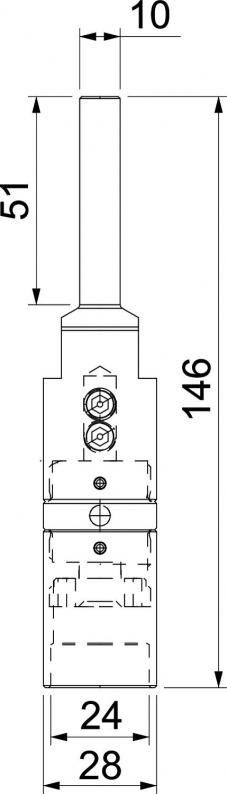

Dimensions

Dimension d min.28 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
isCon stripper 2

Smallest selling unit: 1 piece

Variants

isCon ASE 23
Item no.
5408080
Dimension d min.
28
Fit
23
