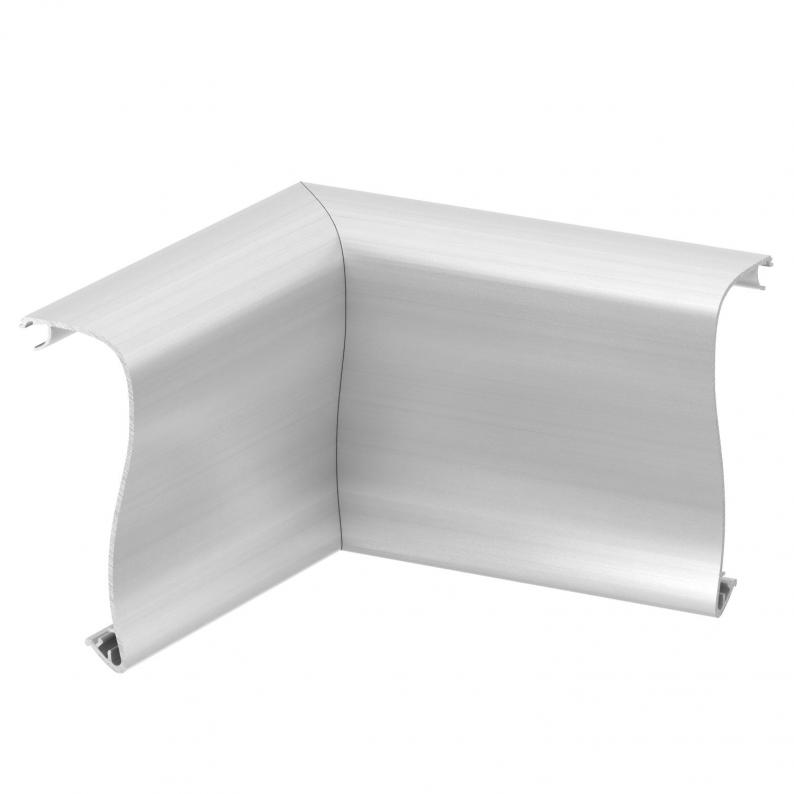

Internal corner cover, Swing
Type OT I Swing EL | Item no. 6115875 | EAN 4012195914310
Item no. / Type
6115875 / OT I Swing EL
Smallest selling unit: 1 piece
1piece
Description
Trunking cover for the internal corner of the design device installation trunking of the GAD series. "Swing" design version for complete coverage of the system opening and the switching and plug-in devices.
Standard version in anodised aluminium, different decoration on request.
Standard version in anodised aluminium, different decoration on request.
Technical data

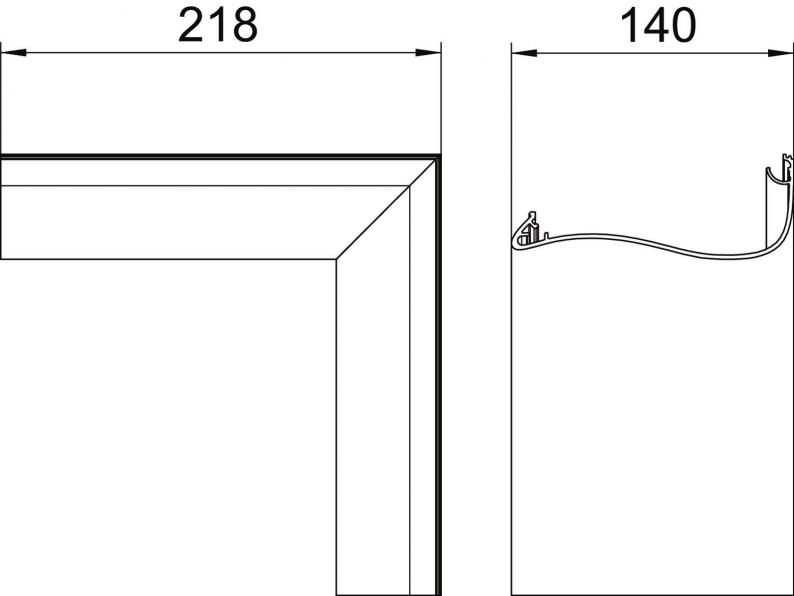

Dimensions
| Length | 218 mm |
|---|---|
| Width | 140 mm |
| Height | 52 mm |
Technical data
| Mounting perforation in base | no |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Cover mounting type | Cross-over |
| Version for | Miscellaneous |
| Shape | Asymmetrical |
| Dimension | 52x140x218 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,9918 kg CO2e / 1 Piece |
