Internal corner cover, Style
Type OT I Style EL | Item no. 6115895 | EAN 4012195914358
Item no. / Type
6115895 / OT I Style EL
Smallest selling unit: 1 piece
1piece
Description

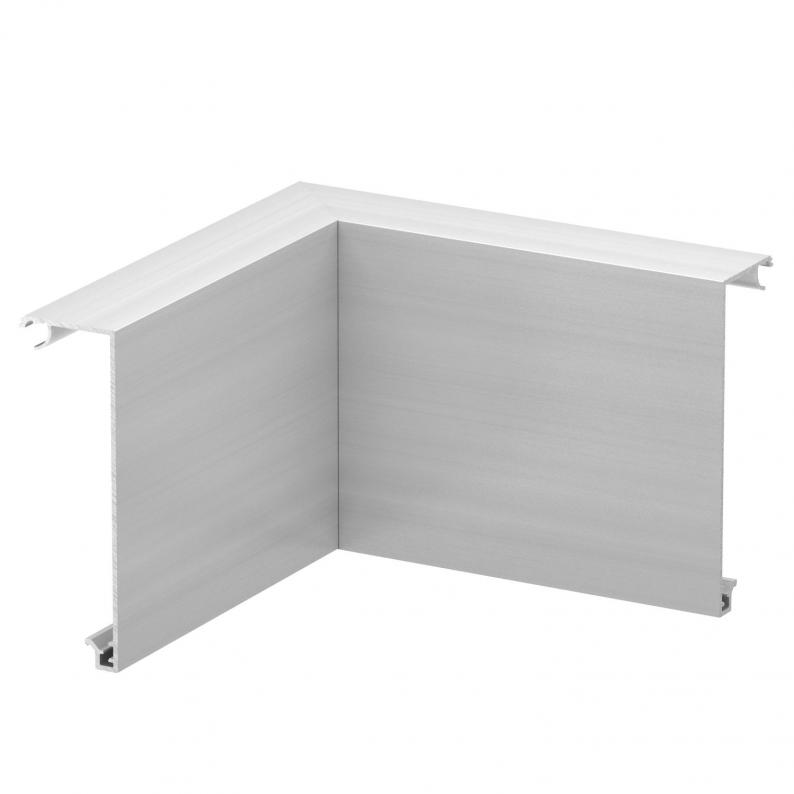

Trunking cover for the internal corner of the design device installation trunking of the GAD series. "Style" design version for complete coverage of the system opening and the switching and plug-in devices.
Technical data

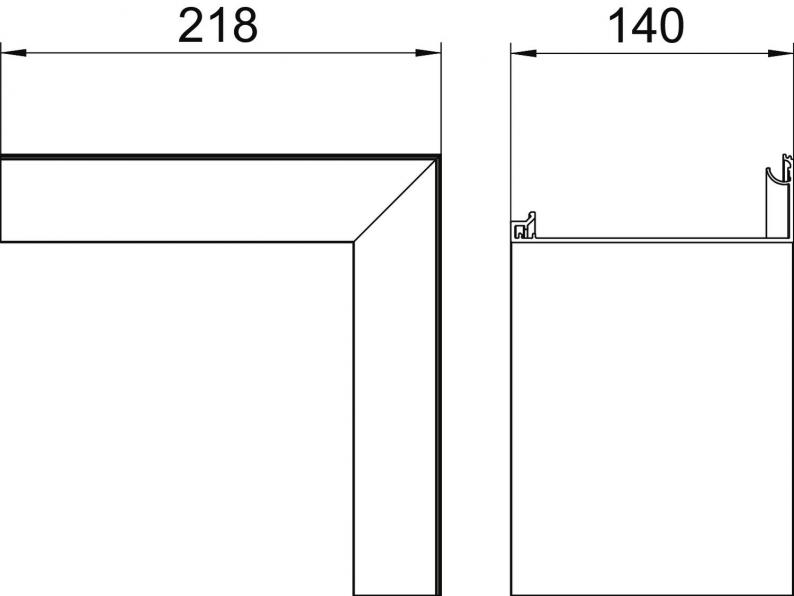

Dimensions
| Length | 218 mm |
|---|---|
| Width | 140 mm |
| Height | 44 mm |
Technical data
| Mounting perforation in base | no |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Cover mounting type | Cross-over |
| Version for | Miscellaneous |
| Shape | Asymmetrical |
| Dimension | 44x140x218 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,9824 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Item no.
OT I Style EL
218
6115895
OT I Style EL
Item no.
6115895
Length
218
