Insulated spacer
Type ISO-A-150 8
|Item no. 5408800
|EAN 4012196036226
Item no. / Type
Length
Fit
Smallest selling unit: 15 piece
15piece
piece
Description
• Mounting foot with 10 connection holes Ø 6.5 mm and 4 connection holes Ø 8.5 mm
• Type ...150 8 with holder suitable for round conductor RD 8
• Application for shelters e.g. golf, barbecue or mountain huts
• Type ...150 8 with holder suitable for round conductor RD 8
• Application for shelters e.g. golf, barbecue or mountain huts
Technical data

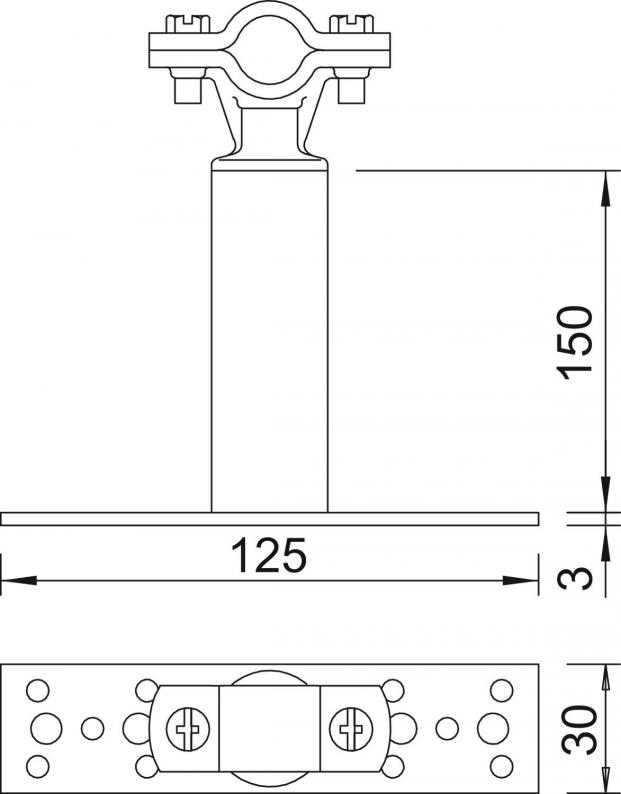

Dimensions
| Length | 150 mm |
|---|---|
| Width | 125 mm |
| Height | 30 mm |
Technical data
| Fit | Rd 8 mm |
|---|---|
| Dimension | 150mm |
| Material | Polyamide |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Fit
Item no.
ISO-A-150 8
150
Rd 8
5408800
ISO-A-500
500
Rd 16
5408806
ISO-A-800
800
Rd 16
5408814
ISO-A-1030
1030
Rd 16
5408820
Length
Fit
ISO-A-150 8
Item no.
5408800
Length
150
Fit
Rd 8
ISO-A-500
Item no.
5408806
Length
500
Fit
Rd 16
ISO-A-800
Item no.
5408814
Length
800
Fit
Rd 16
ISO-A-1030
Item no.
5408820
Length
1030
Fit
Rd 16
