Insulated air-termination rod for inner-routed isCon conductor with side exit

Type isFang IN-A 8000 | Item no. 5408888 | EAN 4012196219414

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

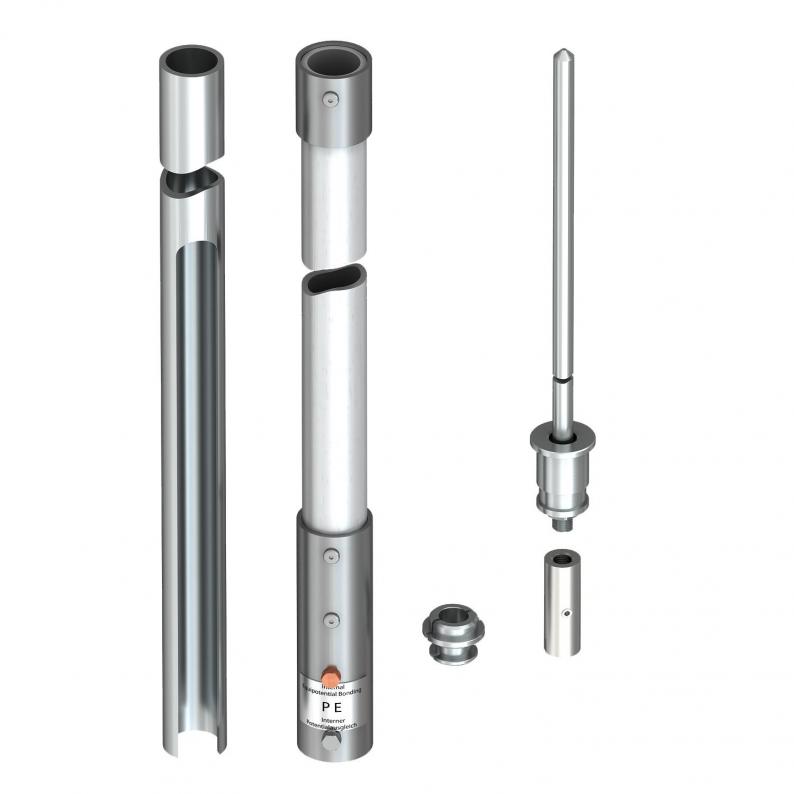

• For installation of the OBO isCon® Pro+ conductor in the pipe

• With side conductor outlet matching isFang air-termination rod stand with side outlet, type isFang 3B-A

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

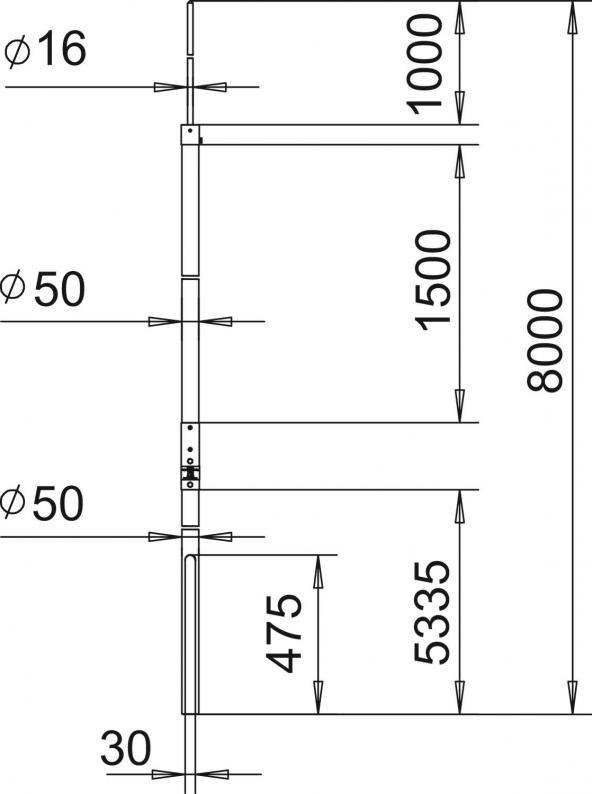

Dimensions

Length	8000 mm
Dimension L	8000 mm
Dimension A	5335 mm
Dimension B	1000 mm
Dimension H	1500 mm
Dimension d min.	50 mm

Technical data

Diameter	50 mm
High voltage-resistant, insulated version	yes
Connection	Round conductor
Version for	Air-termination rod
Dimension	8000mm
Material	Fibre-glass-reinforced plastic
CO2 Footprint (GWP) Cradle-to-Gate	130,9774 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (2)

Declarations (2)

Instructions and Aid (2)

Product images (3)

3D data downloads (2)

Tender specifications (2)

Variants

Length

isFang IN-A 8000

Item no.

5408888

Length

8000

isFang IN-A10000

Item no.

5408890

Length

10000

isFang IN-A 4000

Item no.

5408938

Length

4000

isFang IN-A 6000

Item no.

5408940

Length

6000
