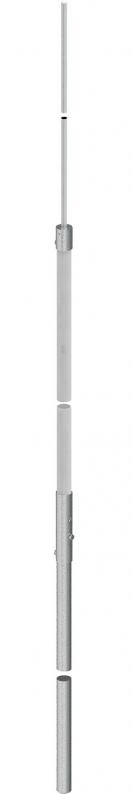

Insulated air-termination rod

Insulated air-termination rod

Type isFang 4000 AL | Item no. 5408943 | EAN 4012195785330

Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• For the isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Aluminium standpipe
• Centre section made of fibre-glass reinforced plastic (GFK)
• Aluminium air-termination tip
  • Lightning current-tested

Technical data

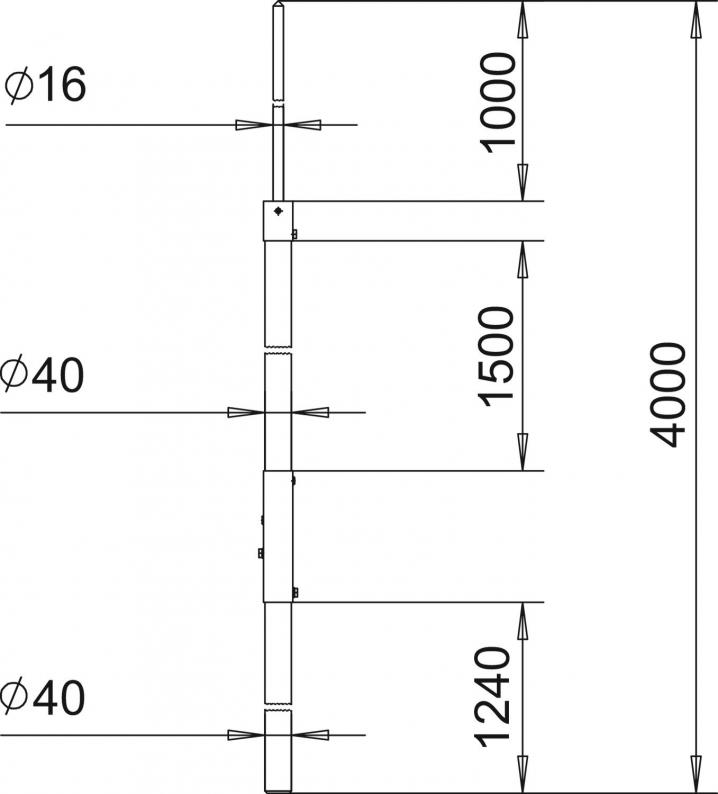

Dimensions

Length4000 mm
Dimension A1240 mm
Dimension B1000 mm
Dimension H1500 mm
Dimension d min.40 mm

Technical data

Diameter40 mm
High voltage-resistant, insulated versionyes
ConnectionRound conductor
Version forAir-termination rod
Dimension4000mm
MaterialFibre-glass-reinforced plastic
ColourLight grey

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Type
F-FIX-S16

Smallest selling unit: 1 piece

Type
F-FIX-B16 3B

Smallest selling unit: 10 piece

Item no. 5408966

isFang tripod
Type
isFang 3B-100 AL

Smallest selling unit: 1 piece

Variants

Length
isFang 4000
Item no.
5408942
Length
4000
isFang 4000 AL
Item no.
5408943
Length
4000
isFang 6000
Item no.
5408946
Length
6000
isFang 6000 AL
Item no.
5408947
Length
6000
