Insert plate DD
Type ELB-L 30 DD | Item no. 6103356 | EAN 4012196029198
Item no. / Type
Length
Width
Smallest selling unit: 3 m
3m
Description

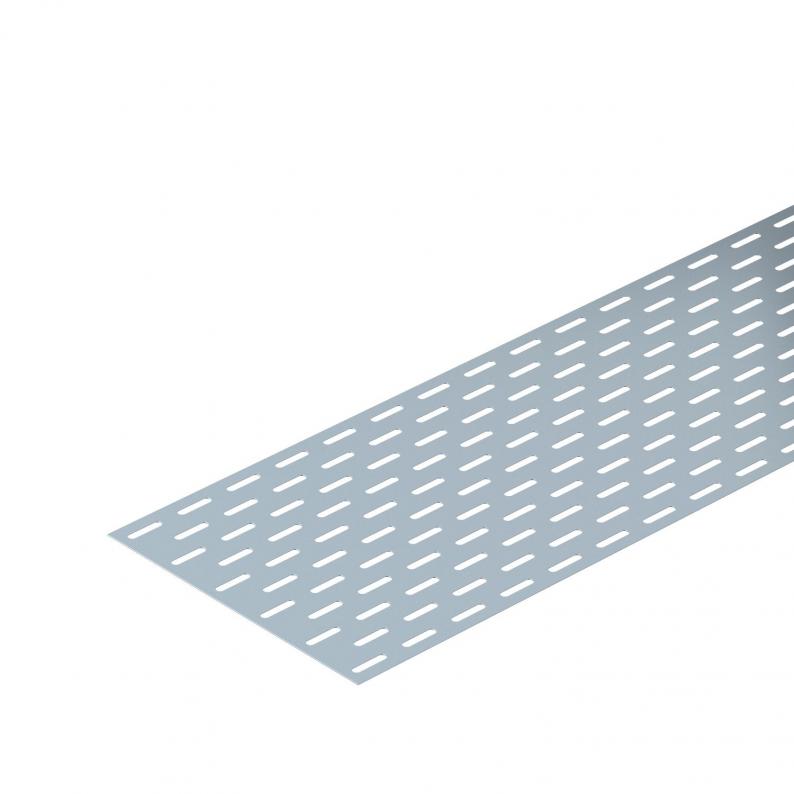

Insert plate for use in cable ladders.
For the fastening in wide span cable ladders use truss-head bolts with the combination nut of type FR SB 6x30.
For the fastening in wide span cable ladders use truss-head bolts with the combination nut of type FR SB 6x30.
Technical data

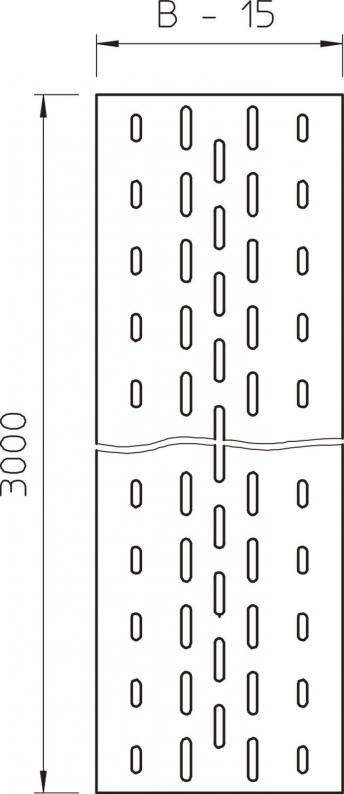

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 300 mm |
| Height | 45 mm |
| Dimension B | 300 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Dimension | 300x3000 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6869 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Width
Item no.
ELB-L 20 DD
3000
200
6103352
ELB-L 30 DD
3000
300
6103356
ELB-L 40 DD
3000
400
6103360
ELB-L 50 DD
3000
500
6103364
ELB-L 60 DD
3000
600
6103368
Width
ELB-L 20 DD
Item no.
6103352
Length
3000
Width
200
ELB-L 30 DD
Item no.
6103356
Length
3000
Width
300
ELB-L 40 DD
Item no.
6103360
Length
3000
Width
400
ELB-L 50 DD
Item no.
6103364
Length
3000
Width
500
ELB-L 60 DD
Item no.
6103368
Length
3000
Width
600
