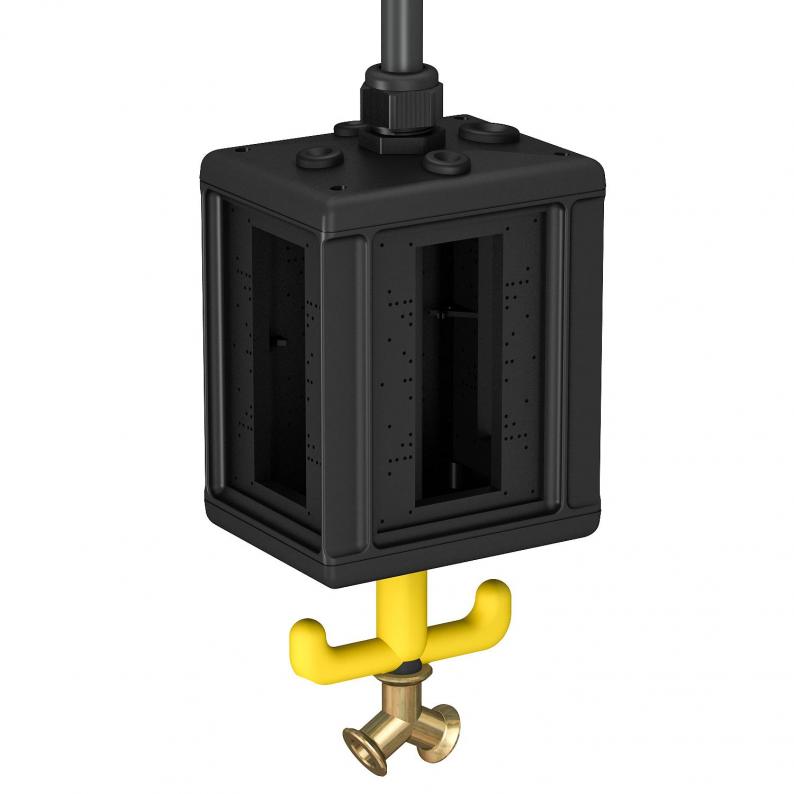

HoverCube VHF-8, empty housing, with compressed air connection
Type VHF-8L LG | Item no. 6109827 | EAN 4012195125228
Item no. / Type
6109827 / VHF-8L LG
Number of SCHUKO sockets
0
FI protection switch
Without
Colour
Graphite black; RAL 9011
Smallest selling unit: 1 piece
1piece
Description
Empty housing with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2". With suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates to supply workplaces in wet areas. Protection rating: IP44.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
Technical data
Dimensions
| Width | 140 mm |
|---|---|
| Height | 1100 mm |
Technical data
| Protection rating | IP44 |
|---|---|
| Depth | 175 mm |
| Number of SCHUKO sockets | 0 |
| CEE socket, 16 A | Without |
| CEE socket, 32 A | Without |
| FI protection switch | Without |
| Supply/connection option | Miscellaneous |
| Handling | abhängbar |
| Other installations and/or empty slots | 8 |
| Military version | no |
| Dimension | 175x135x1100 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,6786 kg CO2e / 1 Piece |
