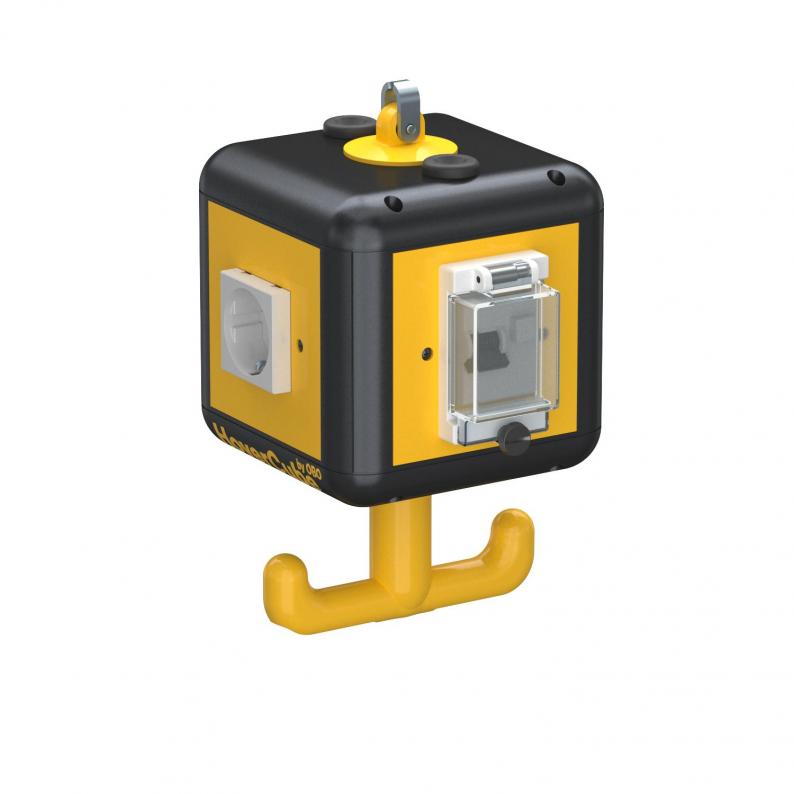

HoverCube VH-4, with FI/LS, 2x protective contact sockets
Type VH-4 2SD FILS | Item no. 6109780 | EAN 4012196776214
Item no. / Type
Number of SCHUKO sockets
FI protection switch
FI mit IFN 0,03 A (Standard)
Colour
Graphite black; RAL 9011
Number of CEE sockets
0
Number of compressed air connections
0
Smallest selling unit: 1 piece
1piece
Description
In the case of an overcurrent/error current (16 A/30 mA), the VH-4 HoverCube with decentralised protection triggers the FI/LS directly. Switching back on can take place directly on the power supply unit.
Equipped as follows:
2x single sockets with earthing pin 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1x 3-pin terminal, with partition for circuit separation and an FI/LS switch.
One unequipped side with a free panel for individual, construction-side equipment (e.g. blanking plate, cover plate for devices/Modul 45 devices).
Equipped as follows:
2x single sockets with earthing pin 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1x 3-pin terminal, with partition for circuit separation and an FI/LS switch.
One unequipped side with a free panel for individual, construction-side equipment (e.g. blanking plate, cover plate for devices/Modul 45 devices).
Technical data

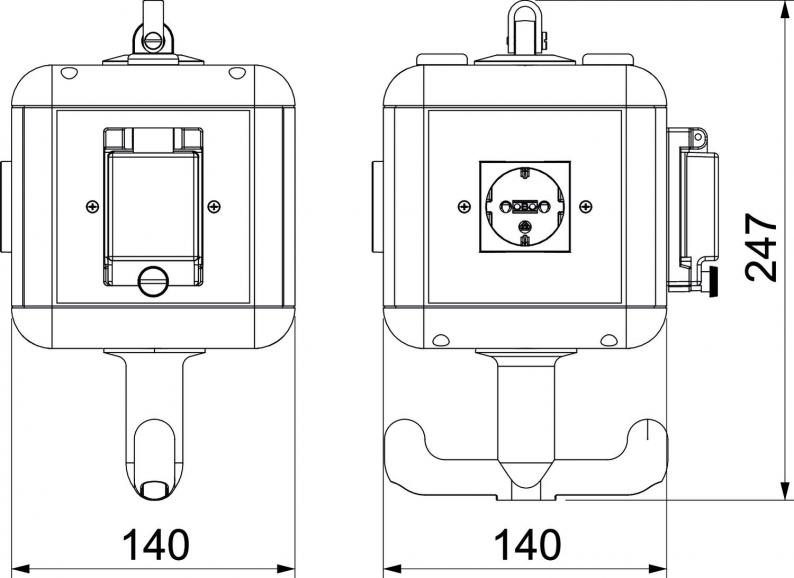

Dimensions
| Width | 140 mm |
|---|---|
| Height | 247 mm |
Technical data
| Protection rating | IP20 |
|---|---|
| Depth | 175 mm |
| Number of SCHUKO sockets | 2 |
| CEE socket, 16 A | Without |
| CEE socket, 32 A | Without |
| FI protection switch | FI mit IFN 0,03 A (Standard) |
| Supply/connection option | Miscellaneous |
| Handling | abhängbar |
| Other installations and/or empty slots | 1 |
| Military version | no |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Number of CEE sockets | 0 |
| Number of compressed air connections | 0 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,2745 kg CO2e / 1 Piece |
