HoverCube VH-4, empty housing
Type VH-4 LG RW | Item no. 6109801 | EAN 4012196101511
Item no. / Type
6109801 / VH-4 LG RW
Number of SCHUKO sockets
0
FI protection switch
Without
Colour
Pure white; RAL 9010
Number of CEE sockets
0
Number of compressed air connections
0
Smallest selling unit: 1 piece
1piece
Description

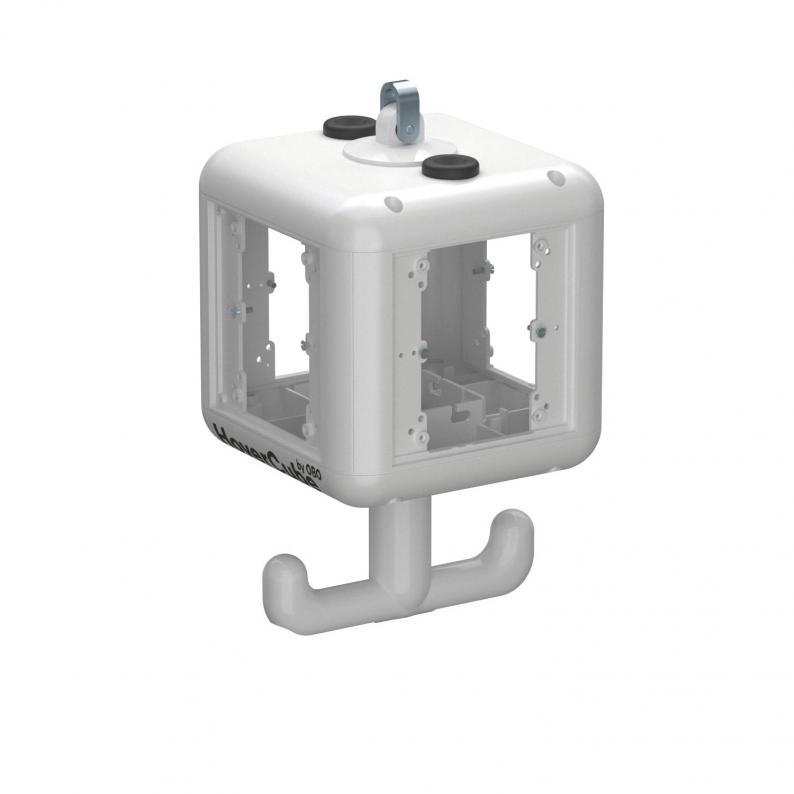

Empty housing with suspension lug and grip hook, for the installation of four electrical resources, with included partition. Without cover plates.
Technical data

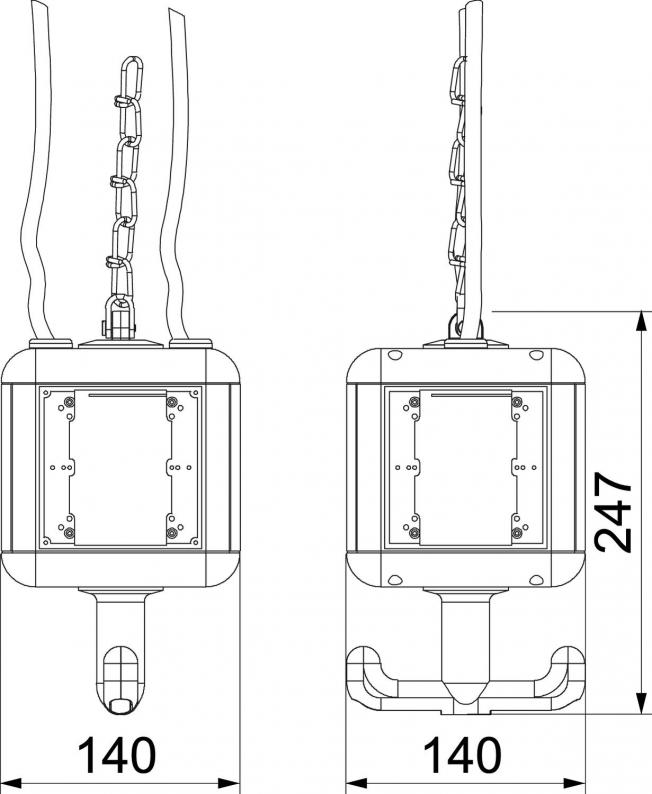

Dimensions
| Width | 140 mm |
|---|---|
| Height | 237 mm |
Technical data
| Protection rating | IP20 |
|---|---|
| Depth | 140 mm |
| Number of SCHUKO sockets | 0 |
| CEE socket, 16 A | Without |
| CEE socket, 32 A | Without |
| Protection | Without |
| FI protection switch | Without |
| Supply/connection option | 2 Leitungen (Ringleitung/zum Durchschleifen) |
| Type of mains connection | Other |
| Handling | abhängbar |
| Other installations and/or empty slots | 0 |
| Military version | no |
| Dimension | 140x140x252 |
| Material | Polyamide |
| Colour | Pure white; RAL 9010 |
| Number of CEE sockets | 0 |
| Number of compressed air connections | 0 |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,1577 kg CO2e / 1 Piece |
