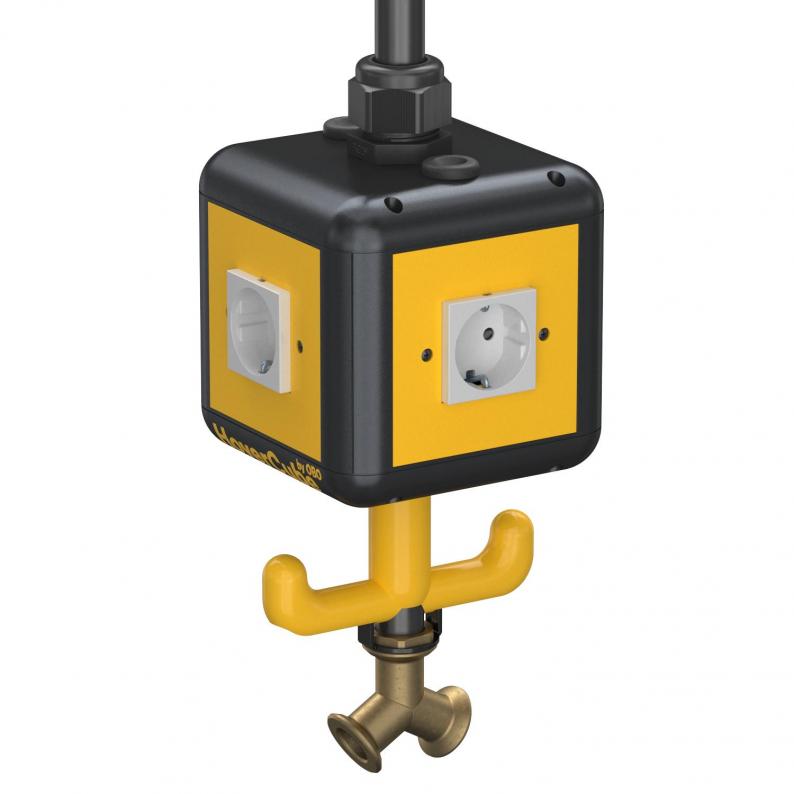

HoverCube VH-4, 4x protective contact socket, with compressed air connection
Type VH-4L 4SD | Item no. 6109812 | EAN 4012195125136




Item no. / Type
6109812 / VH-4L 4SD
Number of SCHUKO sockets
4
FI protection switch
Without
Colour
Graphite black; RAL 9011
Smallest selling unit: 1 piece
1piece
Description
Housing equipped and prewired, with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2", with suspension lug, grip hook and four cover plates.
Equipped as follows: 4 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for two AC currents, connection via 2 x 3-pin terminals, 1 x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
Equipped as follows: 4 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for two AC currents, connection via 2 x 3-pin terminals, 1 x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
Technical data

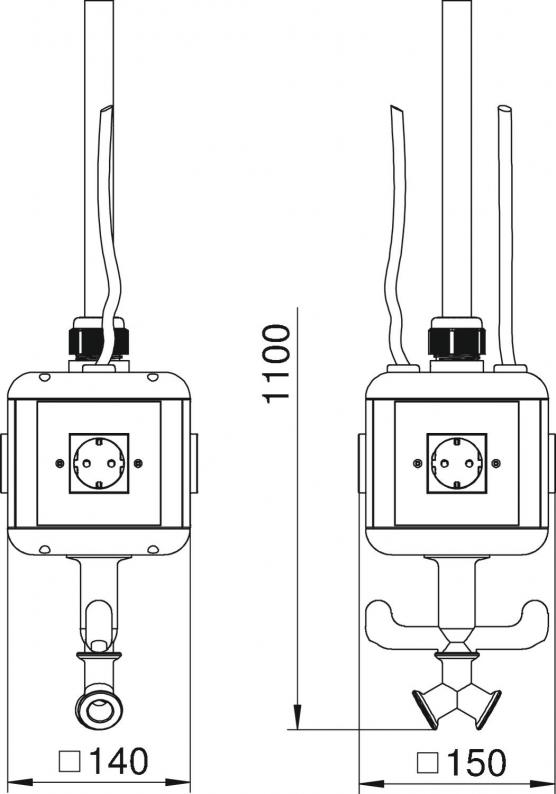

Dimensions
Width | 140 mm |
---|---|
Height | 1100 mm |
Technical data
Protection rating | IP20 |
---|---|
Depth | 150 mm |
Number of SCHUKO sockets | 4 |
CEE socket, 16 A | Without |
CEE socket, 32 A | Without |
FI protection switch | Without |
Supply/connection option | Miscellaneous |
Handling | abhängbar |
Other installations and/or empty slots | 0 |
Military version | no |
Dimension | 140x140x1100 |
Material | Polyamide |
Colour | Graphite black; RAL 9011 |
CO2 Footprint (GWP) Cradle-to-Gate | 5,8149 kg CO2e / 1 Piece |
