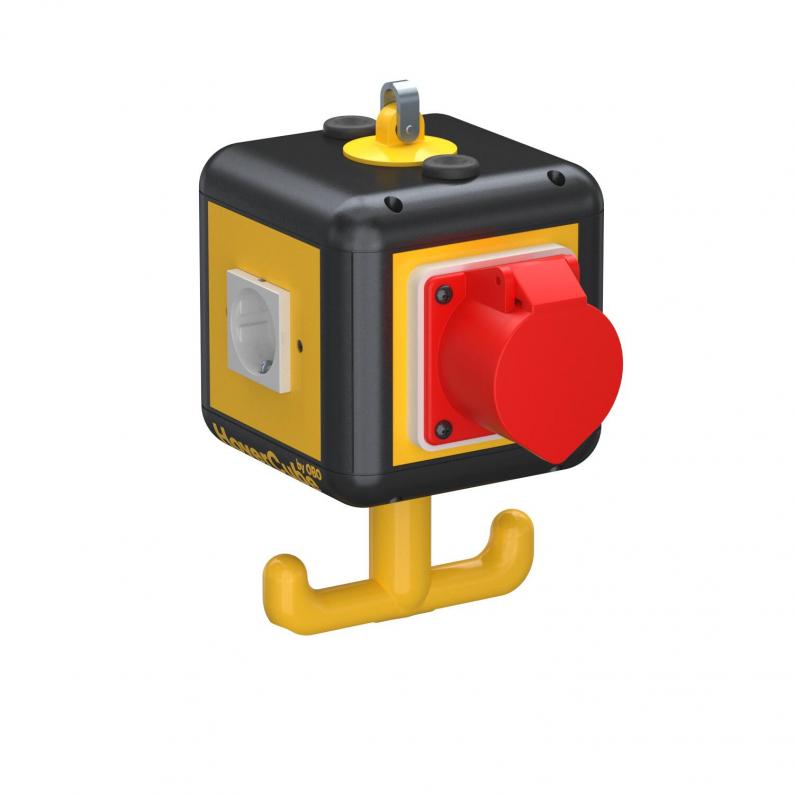

HoverCube VH-4, 3x protective contact socket, 1x CEE 16 A
Type VH-4 3SD1C16 | Item no. 6109804 | EAN 4012195125075
Item no. / Type
6109804 / VH-4 3SD1C16
Number of SCHUKO sockets
3
FI protection switch
Without
Colour
Graphite black; RAL 9011
Number of CEE sockets
1
Number of compressed air connections
0
Smallest selling unit: 1 piece
1piece
Description
Housing equipped and prewired with suspension lug, grip hook and four cover plates.
Equipped as follows:
3 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1 x 3-pole terminal, 1 x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
Equipped as follows:
3 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1 x 3-pole terminal, 1 x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
Technical data

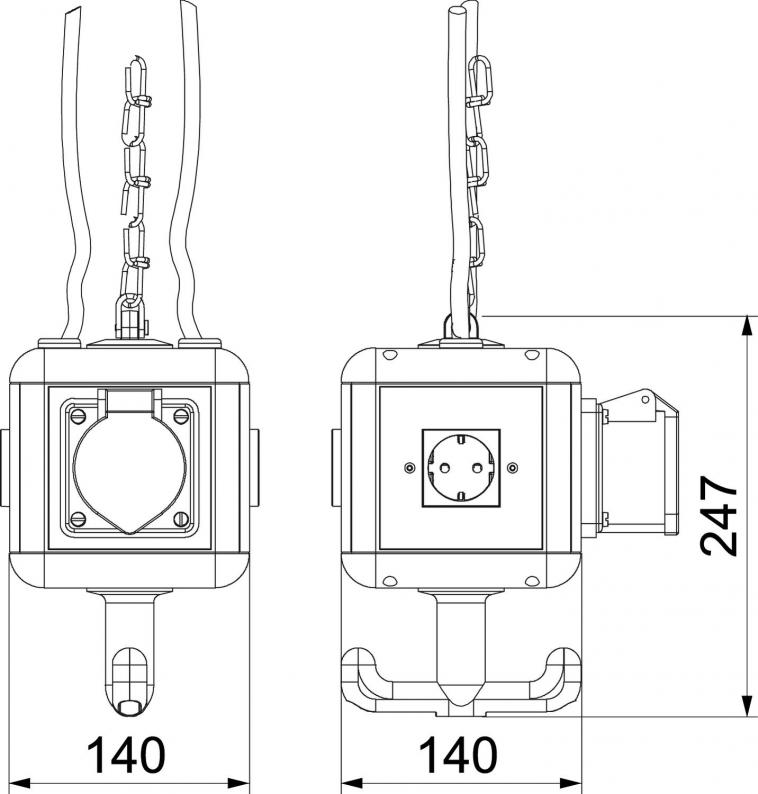

Dimensions
| Width | 140 mm |
|---|---|
| Height | 247 mm |
Technical data
| Protection rating | IP20 |
|---|---|
| Depth | 196 mm |
| Number of SCHUKO sockets | 3 |
| CEE socket, 16 A | 1x16A5p400V |
| CEE socket, 32 A | Without |
| FI protection switch | Without |
| Supply/connection option | Miscellaneous |
| Handling | abhängbar |
| Other installations and/or empty slots | 0 |
| Military version | no |
| Dimension | 140x140x252 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Number of CEE sockets | 1 |
| Number of compressed air connections | 0 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,2937 kg CO2e / 1 Piece |
