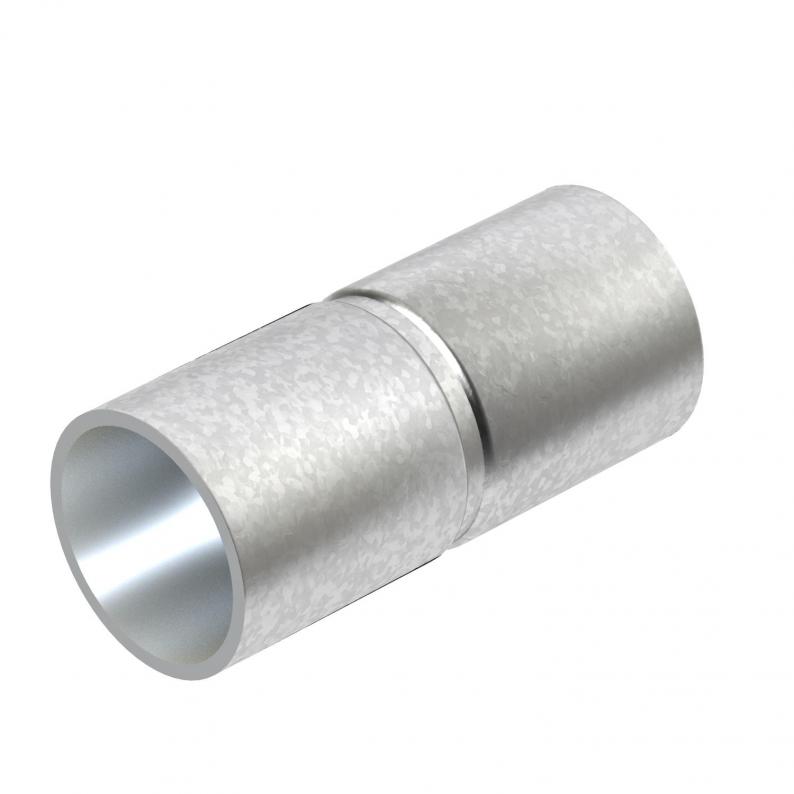

Hot-dip galvanised steel sleeve, without thread

Hot-dip galvanised steel sleeve, without thread

Type SV32W FT
|
Item no. 2046623
|
EAN 4012195782445
Show all variants
Item no. / Type

Smallest selling unit: 50 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length70 mm
Dimension L70 mm
Dimension d32,8 mm
Dimension t1,2 mm
Dimension m (mm)M32
Dimension l35 mm
Dimension D35,2 mm

Technical data

Halogen-freeyes
Size32
Polished surfaceno
Brushed surfaceno
for pipe diameter32 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ32mm
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate0,2804 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

SV16W FT
Item no.
2046620
SV20W FT
Item no.
2046621
SV25W FT
Item no.
2046622
SV32W FT
Item no.
2046623
SV40W FT
Item no.
2046624
SV50W FT
Item no.
2046625
SV63W FT
Item no.
2046626
