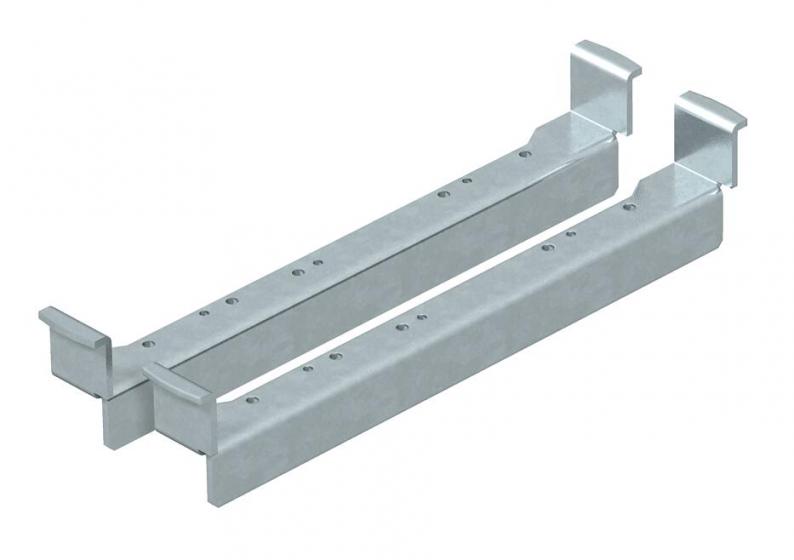

Height adjustment bracket for installation in UZD/UGD250-3 for one square cassette
Type NW 250-3 QK
|Item no. 7410540
|EAN 4012195432753
Item no. / Type
7410540 / NW 250-3 QK
Smallest selling unit: 1 piece
1piece
piece
Description
Height adjustment bracket to mount the square height-adjustable cassettes in the underfloor connection socket, type UZD/UGD 250.
With all the components necessary for mounting and height adjustment.
With all the components necessary for mounting and height adjustment.
Technical data
Technical data
| Decouplable | yes |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Heavy-duty version | no |
| Approvals | VDE |
| Version for | Square |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,0972 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,0972 kg CO2e / 1 Piece |
|---|
