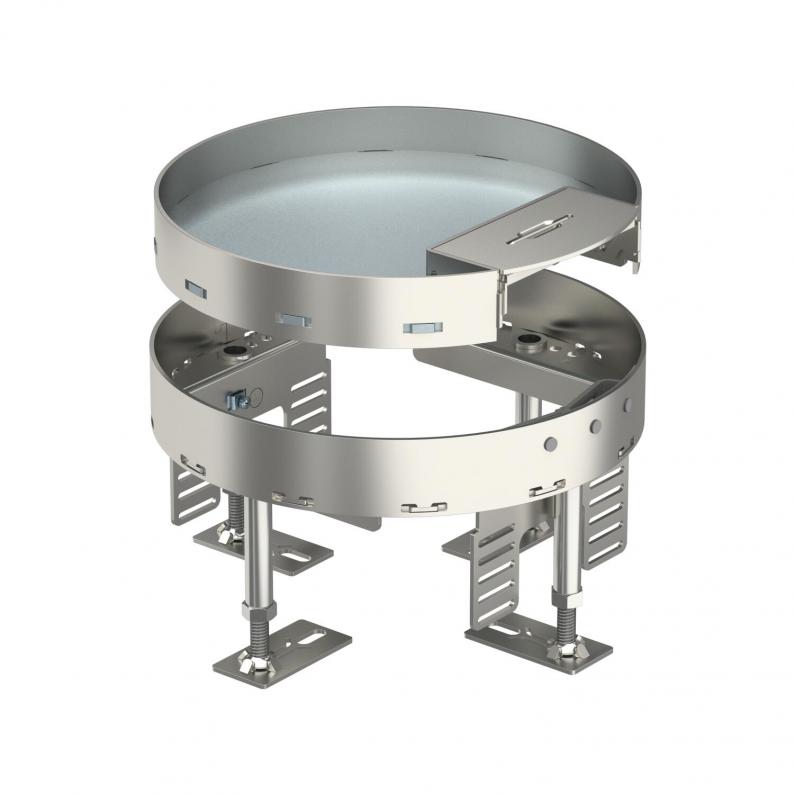

Height-adjustable cassette with cord outlet, RKSR, stainless steel
Type RKS2 R4 V20
|Item no. 7409258
|EAN 4012195867395
Item no. / Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
R4
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size R4 with cord outlet for installation of accessories in dry-care floors for indoor use.
Height-adjustable cassette for cord outlet, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of 2 UT3 universal supports for 4 individual installation devices with support ring/support clamp or 6 Modul 45 devices.
Height-adjustable cassette for cord outlet, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of 2 UT3 universal supports for 4 individual installation devices with support ring/support clamp or 6 Modul 45 devices.
Technical data

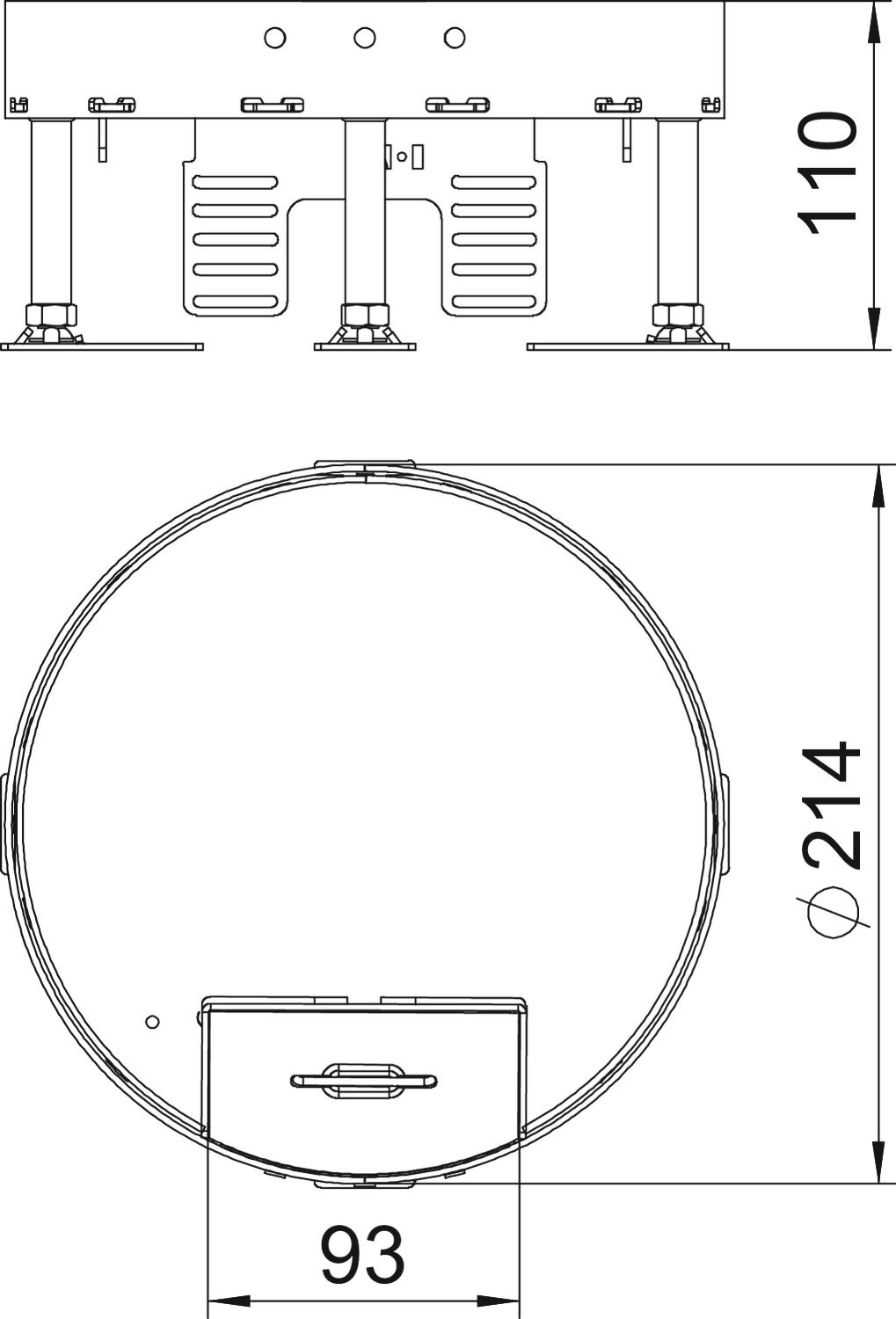

Dimensions
| Length | 214 mm |
|---|---|
| Width | 214 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| Floor height, min. | 110 mm |
|---|---|
| Floor height, max. | 155 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, min. | 110 mm |
| Height-adjustment range, max. | 155 mm |
| Number of installable devices | 6 |
| Decouplable | no |
| Installation diameter | 215 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 2 |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT3 |
| Heavy-duty version | no |
| Nominal size for device installation units | R4 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Dimension | Ø215mm |
| Material | Stainless steel 1.4301 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 12,3916 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (1)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
SK RK4R
7404382
Smallest selling unit: 1 piece
1piece
piece
UT3 45 3
7408723
Smallest selling unit: 1 piece
1piece
piece
Type
SK RK4R
Smallest selling unit: 1 piece
1piece
piece
Variants
Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
Item no.
RKS2 R4 V20
110
155
20
R4
7409258
RKS2 R4 V25
110
155
25
R4
7409260
Floor covering thickness
RKS2 R4 V20
Item no.
7409258
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
20
Nominal size for device installation units
R4
RKS2 R4 V25
Item no.
7409260
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
25
Nominal size for device installation units
R4
