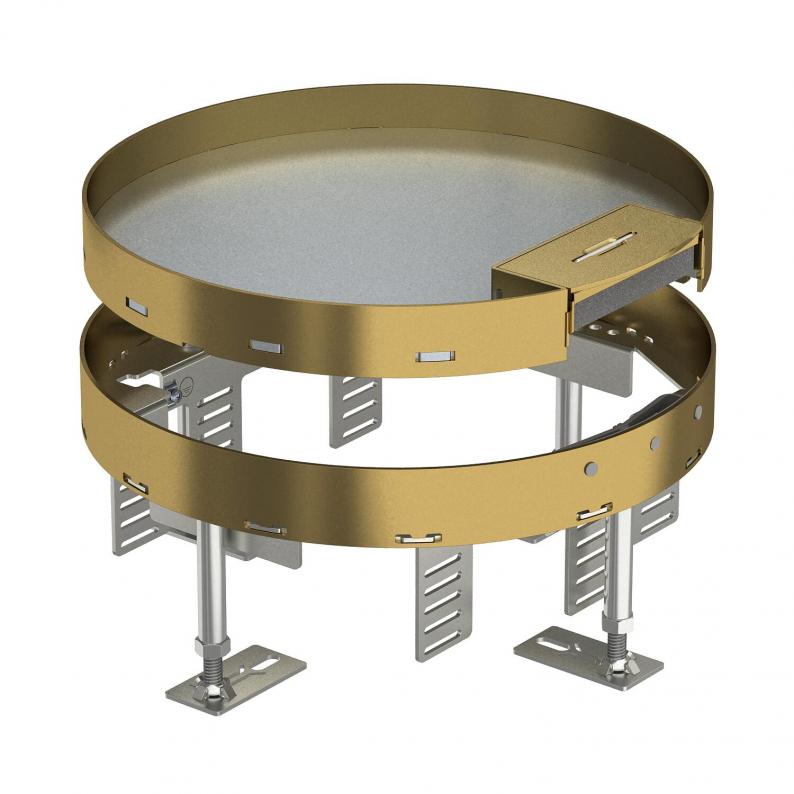

Height-adjustable cassette with cord outlet, RKSR, brass
Type RKS2 R7 M20
|Item no. 7409262
|EAN 4012195867418
Item no. / Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
R7
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size R7 with cord outlet for installation of accessories in dry-care floors for indoor use.
Height-adjustable cassette for cord outlet, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT3 universal supports and one UT4 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
Height-adjustable cassette for cord outlet, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT3 universal supports and one UT4 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
Technical data
Technical data
| Floor height, min. | 110 mm |
|---|---|
| Floor height, max. | 155 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, min. | 110 mm |
| Height-adjustment range, max. | 155 mm |
| Number of installable devices | 10 |
| Decouplable | no |
| Installation diameter | 275 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT3 / UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R7 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |

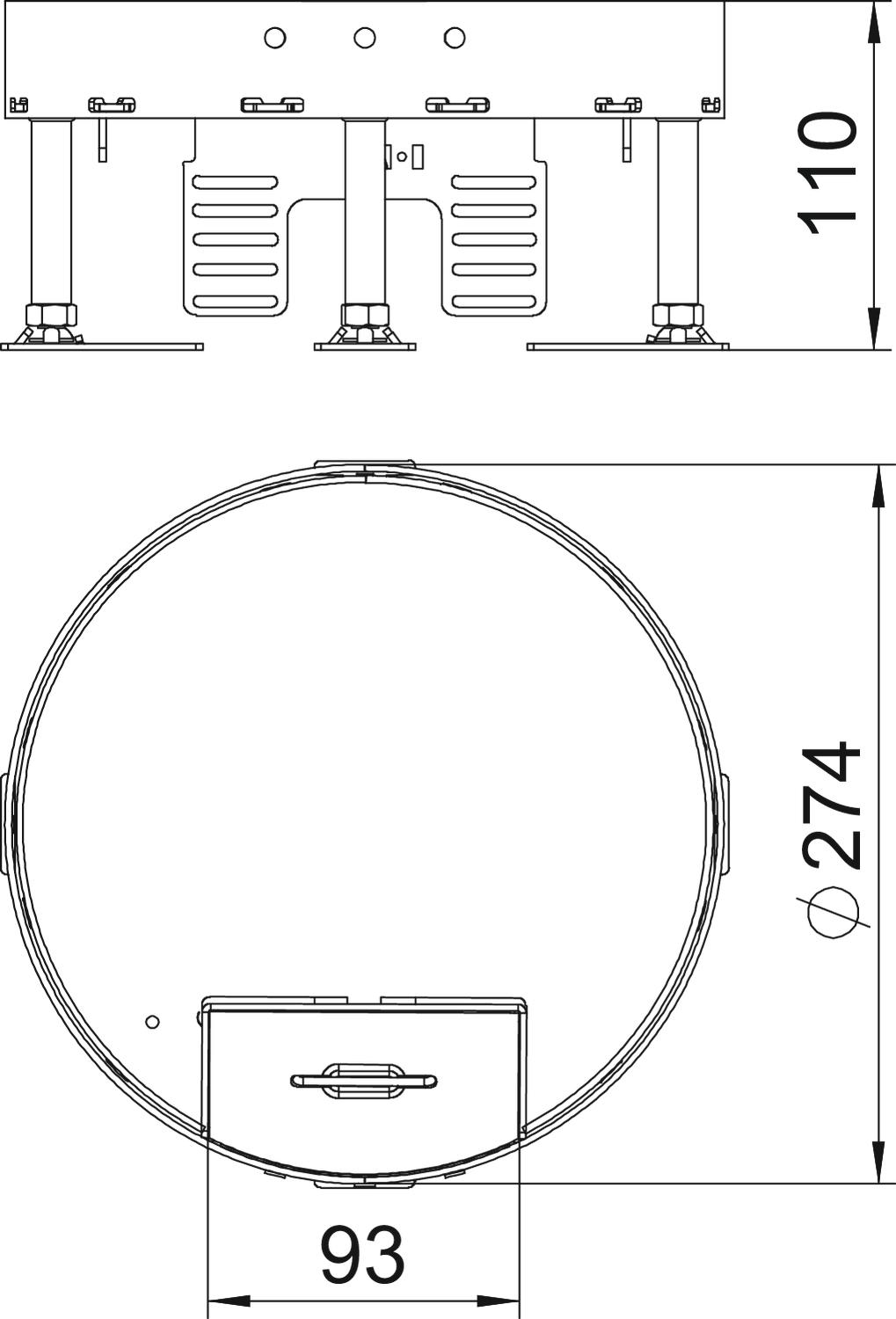

| Dimension | Ø275mm |
| Material | Brass |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
Item no.
RKS2 R7 M20
110
155
20
R7
7409262
RKS2 R7 M25
110
155
25
R7
7409264
Floor covering thickness
RKS2 R7 M20
Item no.
7409262
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
20
Nominal size for device installation units
R7
RKS2 R7 M25
Item no.
7409264
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
25
Nominal size for device installation units
R7
