Heavy mesh cable tray SGR 155 FT

Heavy mesh cable tray SGR 155 FT

Type SGR 155 450 FT | Item no. 6003695 | EAN 4012195380283

Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

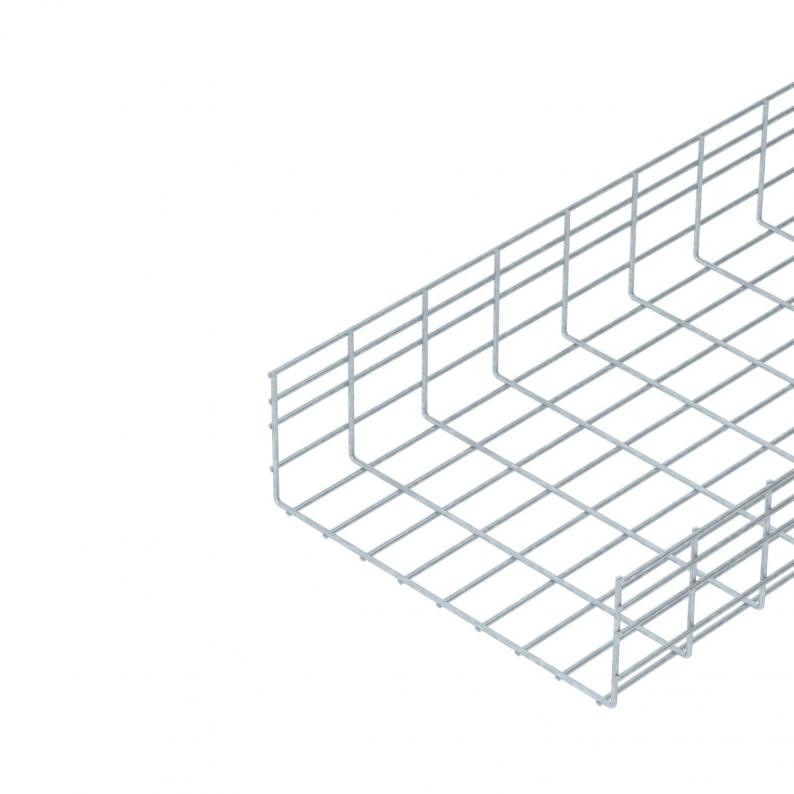

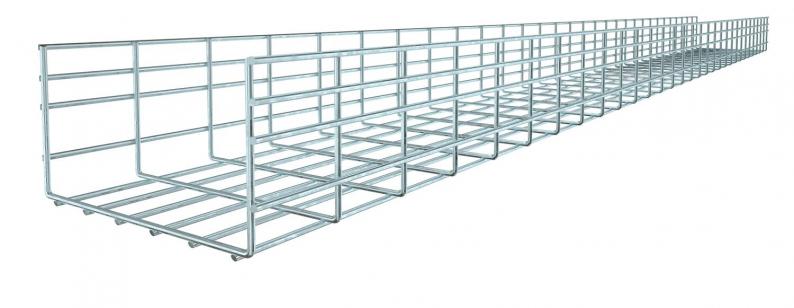

Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

The grid width is 50 x 100 mm.

  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

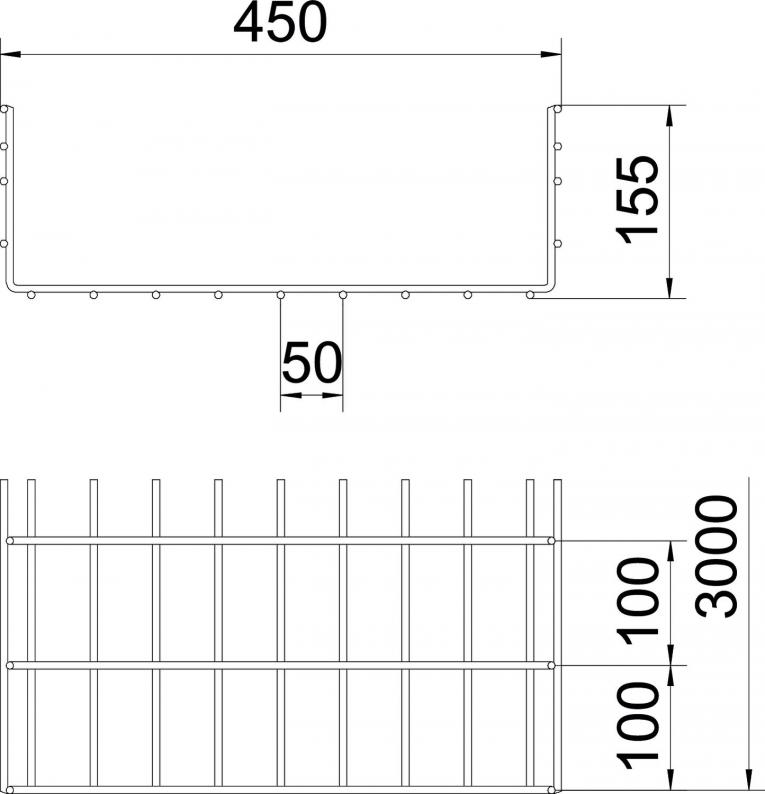

Dimensions

Length3000 mm
Width450 mm
Height155 mm
Dimension B450 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section663 cm²
Rustproof steel, pickledno
Usable cross-section66300 mm²
Integrated partitionWithout
Screwless connectorno
Profile shapeU-shaped
Wire diameter6 mm
Dimension155x450x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate11,1098 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,6 kN/m
Support spacing 2.5 m1,15 kN/m
Support spacing 1.0 m4,1 kN/m
Support spacing 3.0 m0,95 kN/m
Support spacing 3.5 m0,83 kN/m
Support spacing 4.0 m0,6 kN/m
Support spacing 1.5 m2,5 kN/m
Load diagram, mesh cable tray, type SGR 155

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
System accessories

Item no. 6003758

End cap
Type
SGR KS OR

Smallest selling unit: 500 piece

Item no. 6062338

Barrier strip 135 DD
Type
TSG 135 DD

Smallest selling unit: 3 m

Item no. 6220142

Exit plate FT
Type
KAB GR FT

Smallest selling unit: 10 piece

Variants

Width
Usable cross-section
SGR 155 450 FT
Item no.
6003695
Length
3000
Width
450
Height
155
Maintain electrical functions
no
Usable cross-section
663
Wire diameter
6
SGR 155 600 FT
Item no.
6003698
Length
3000
Width
600
Height
155
Maintain electrical functions
no
Usable cross-section
888
Wire diameter
6
