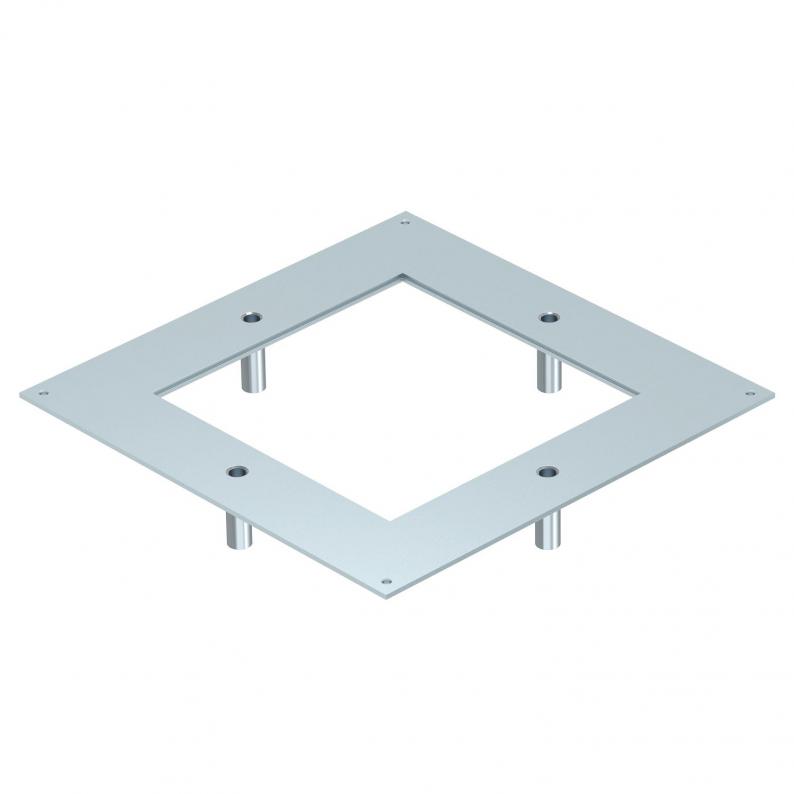

Heavy-duty mounting lid for 350, nominal size 9
Type DUG 350-3 9SL
|Item no. 7401410
|EAN 4012196539031
Item no. / Type
7401410 / DUG 350-3 9SL
Smallest selling unit: 1 piece
1piece
piece
Description
The heavy-duty mounting lid for the type UZD350 underfloor box is suitable for installation in a square heavy-duty cassette of nominal size 9. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
Technical data
Dimensions
| Length | 383 mm |
|---|---|
| Width | 383 mm |
| Dimension A | 383 mm |
| Dimension a | 244 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Floor care | Dry |
| Heavy-duty version | yes |
| Nominal size for device installation units | 9 |
| Nominal size | 350 mm |
| Mounting opening | Square |
| Dimension | 382x382x59 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
15,7562 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 15,7562 kg CO2e / 1 Piece |
|---|
