Heavy-duty mounting lid for 350, nominal size 4
Type DUG 350-3 4SL
|Item no. 7401408
|EAN 4012196539024
Item no. / Type
7401408 / DUG 350-3 4SL
Smallest selling unit: 1 piece
1piece
piece
Description

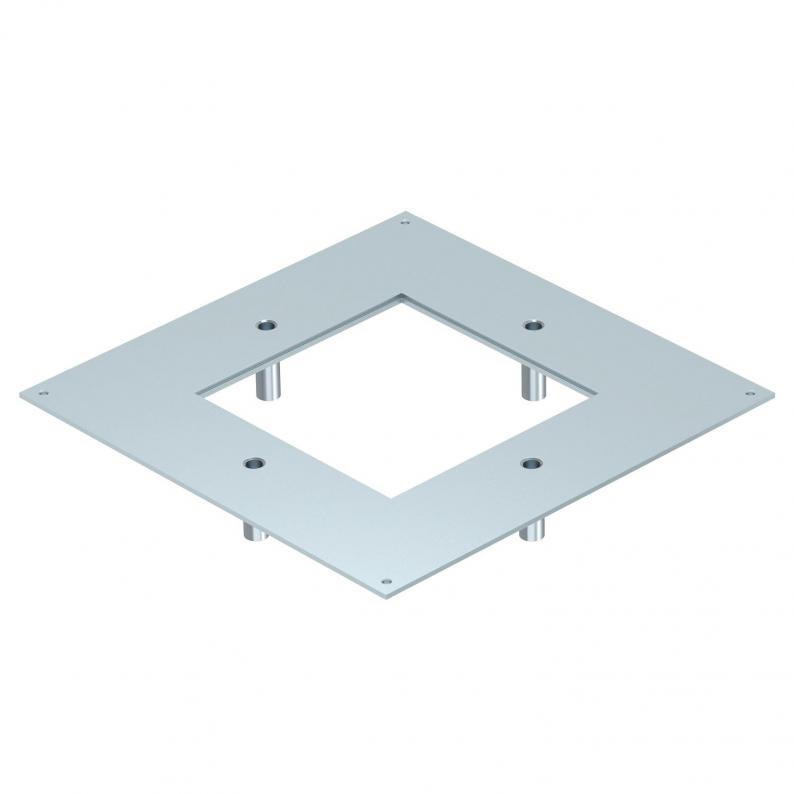

The heavy-duty mounting lid for the type UZD350 underfloor box is suitable for installation in a square heavy-duty cassette of nominal size 4. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
Technical data

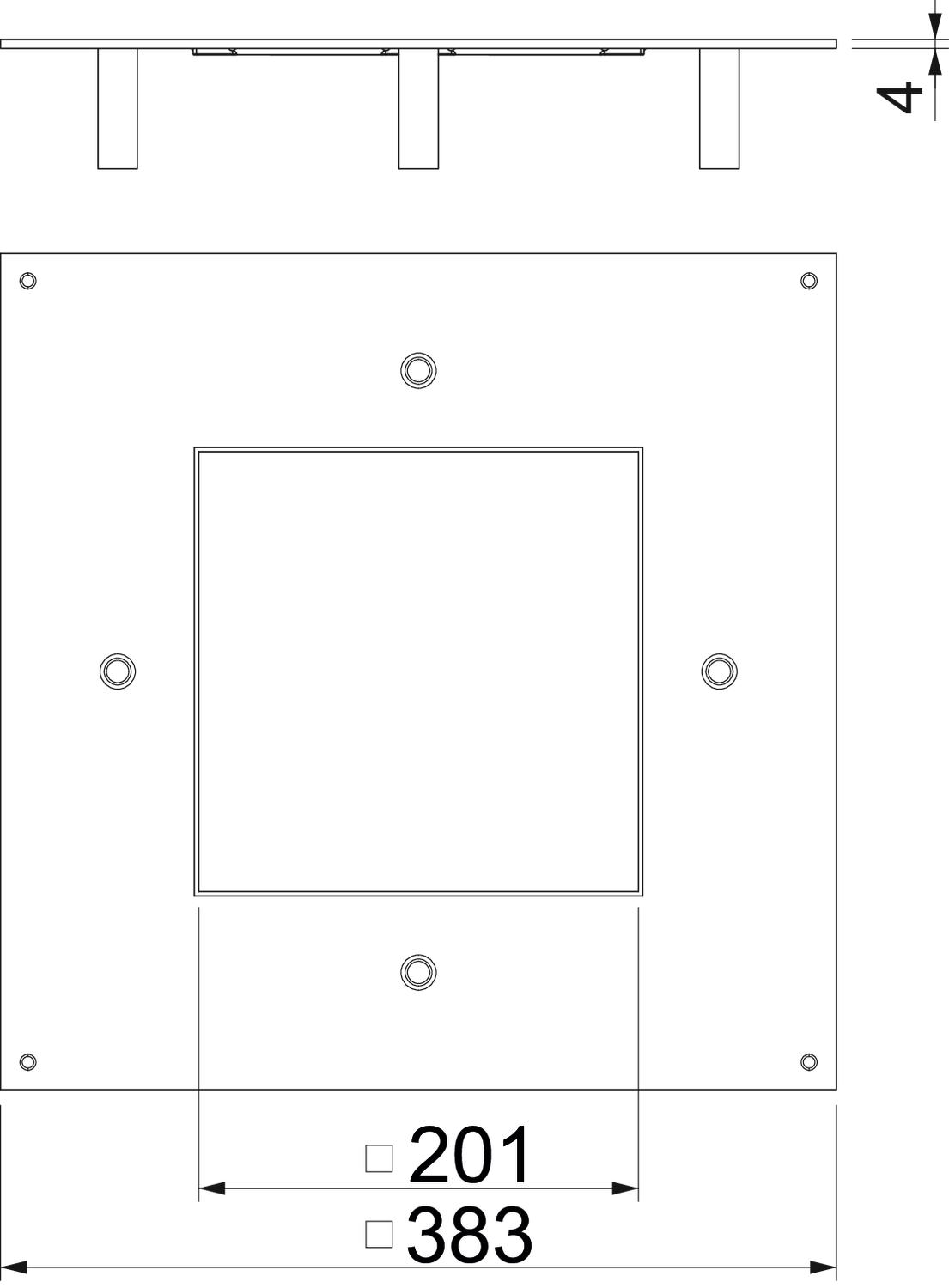

Dimensions
| Length | 383 mm |
|---|---|
| Width | 383 mm |
| Dimension A | 383 mm |
| Dimension a | 201 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Mounting opening cover | no |
| Heavy-duty version | yes |
| Nominal size for device installation units | 4 |
| Nominal size | 350 mm |
| Mounting opening | Square |
| Dimension | 382x382x59 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
15,9338 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 15,9338 kg CO2e / 1 Piece |
|---|
