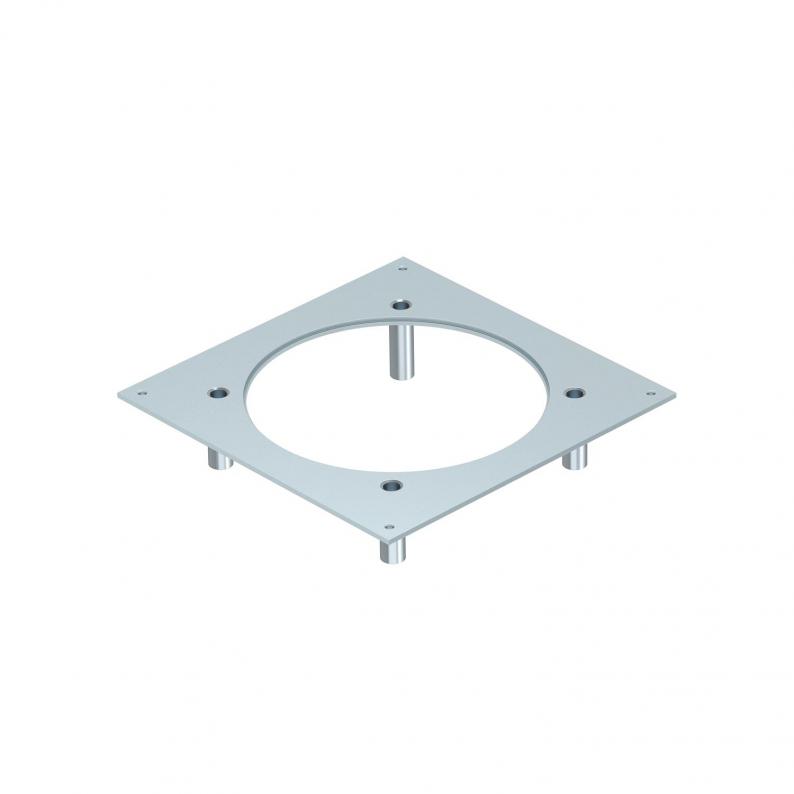

Heavy-duty mounting lid for 250, nominal size R4
Type DUG 250-3 R4SL
|Item no. 7401406
|EAN 4012196539017
Item no. / Type
7401406 / DUG 250-3 R4SL
Smallest selling unit: 1 piece
1piece
piece
Description
The heavy-duty mounting lid for the UZD250 underfloor box is suitable for the installation of a round heavy-duty cassette of nominal size R4. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
Technical data

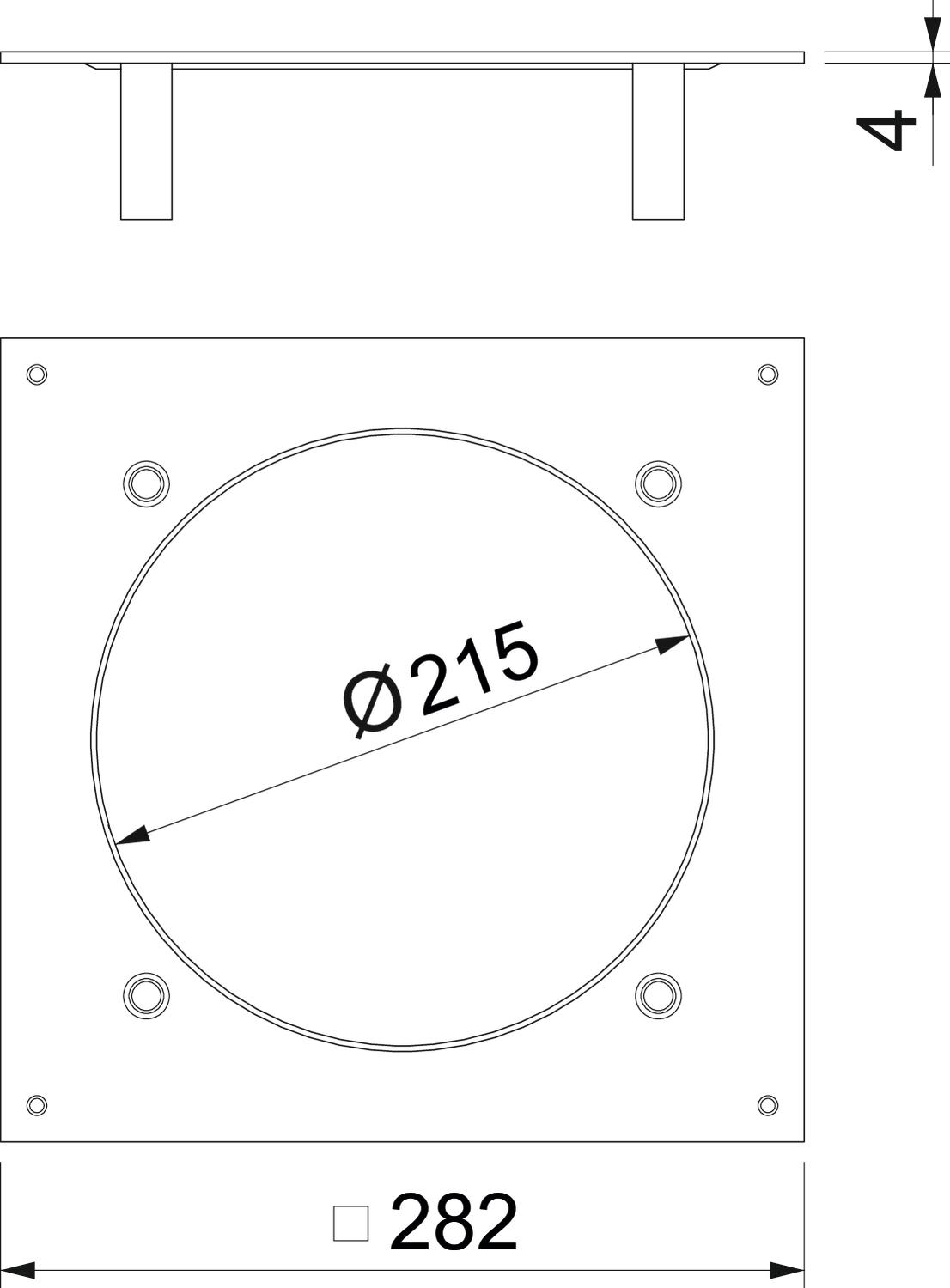

Dimensions
| Length | 282 mm |
|---|---|
| Width | 282 mm |
| Dimension A | 282 mm |
| Dimension d Ø | 215 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Mounting opening cover | no |
| Heavy-duty version | yes |
| Nominal size for device installation units | R4 |
| Nominal size | 250 mm |
| Mounting opening | Round |
| Dimension | 282x282x59 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
7,8409 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,8409 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
