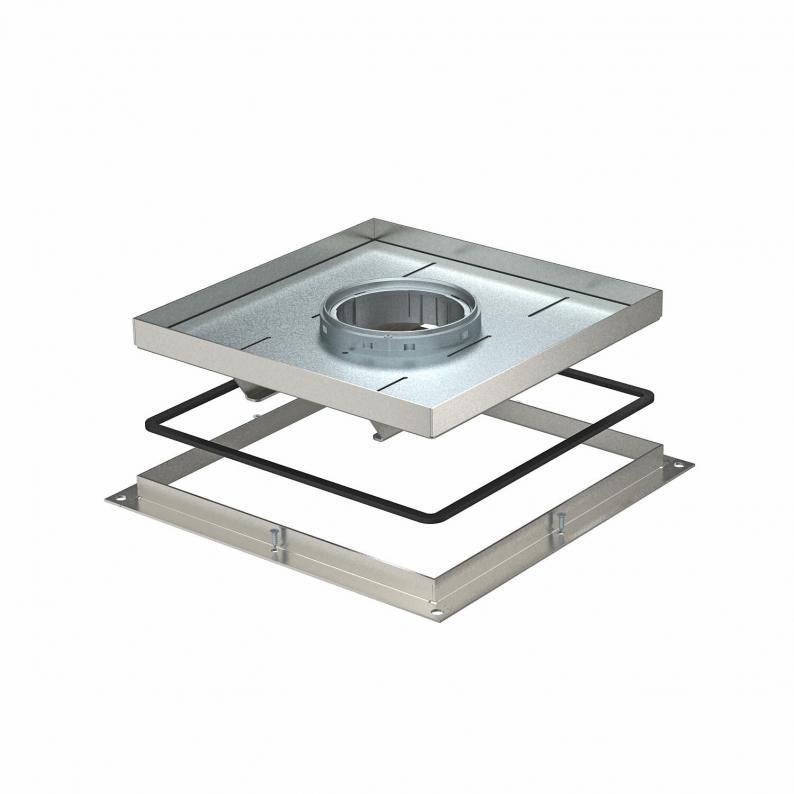

Heavy-duty frame cassette for tube body, RKFSL, nominal size 250-3
Type RKF2 SL1 V2 20
|Item no. 7409482
|EAN 4012195869818
Item no. / Type
Floor covering thickness
Dimension h
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy-duty frame cassette for tube body for the installation of accessories in the UZD250-3in dry or wet-care floors in interior areas Load class 1 to 10 kN. The tube body is not contained in the scope of delivery.
Technical data

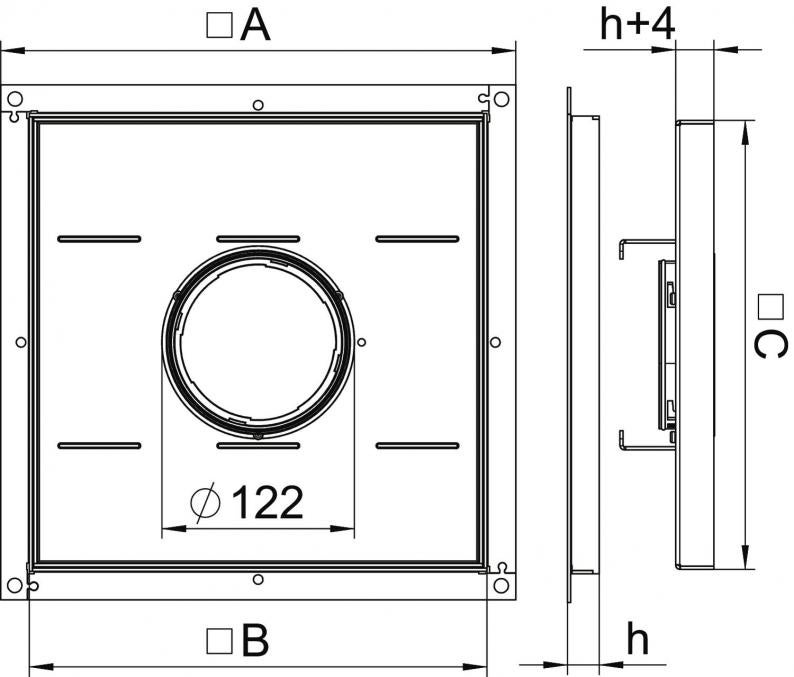

Dimensions
| Dimension A | 324 mm |
|---|---|
| Dimension B | 288 mm |
| Dimension C | 282 mm |
| Dimension h | 20 mm |
Technical data
| Floor covering thickness | 18 mm |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Cable outlet version | Lowerable tube body |
| Heavy load class | 10 kN (OBO SL1) |
| Heavy-duty version | yes |
| Dimension | 283x283x20 |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor covering thickness
Dimension h
Item no.
RKF2 SL1 V2 20
18
20
7409482
RKF2 SL1 V2 30
28
30
7409486
RKF2 SL1 V2 40
38
40
7409490
Floor covering thickness
Dimension h
RKF2 SL1 V2 20
Item no.
7409482
Floor covering thickness
18
Dimension h
20
RKF2 SL1 V2 30
Item no.
7409486
Floor covering thickness
28
Dimension h
30
RKF2 SL1 V2 40
Item no.
7409490
Floor covering thickness
38
Dimension h
40
