Heavy-duty frame cassette, blank, RKSL, nominal size 350-3
Type RK SL1 V3 25
|Item no. 7405916
|EAN 4012195105909
Item no. / Type
Floor height, min.
Floor covering thickness
Dimension h
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

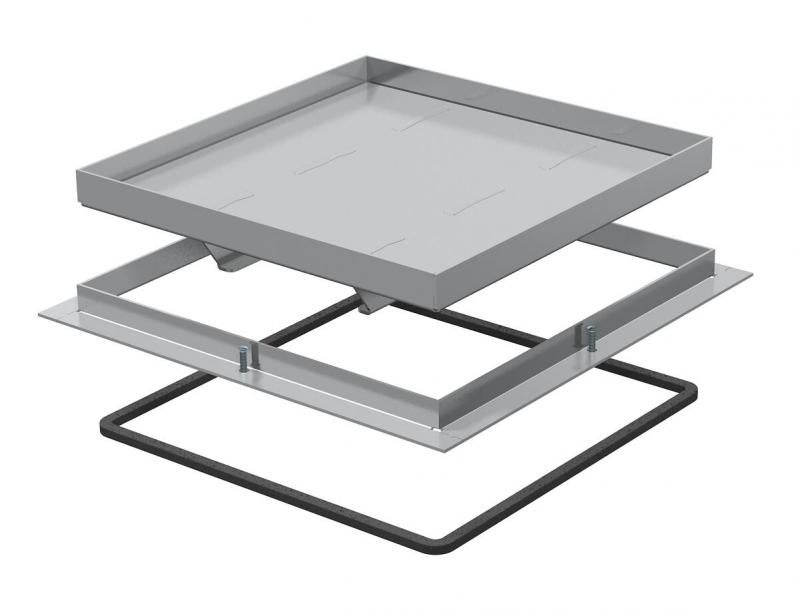

"Blank" heavy-duty frame cassette for the creation of an inspection opening in the UZD350-3 in dry or wet-cleaned floors. Load class 1 to 10 kN. Only suitable for smooth floor coverings for indoor use.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Floor height, min. | 95 mm |
| Floor covering thickness | 23 mm |
| Length of installation dimensions | 390 mm |
| Wide installation dimensions | 390 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Heavy load class | 10 kN (OBO SL1) |
| Installation system type | GB3 |
| Heavy-duty version | yes |
| Dimension | 383x383x25 |
| Material | Stainless steel 1.4301 |

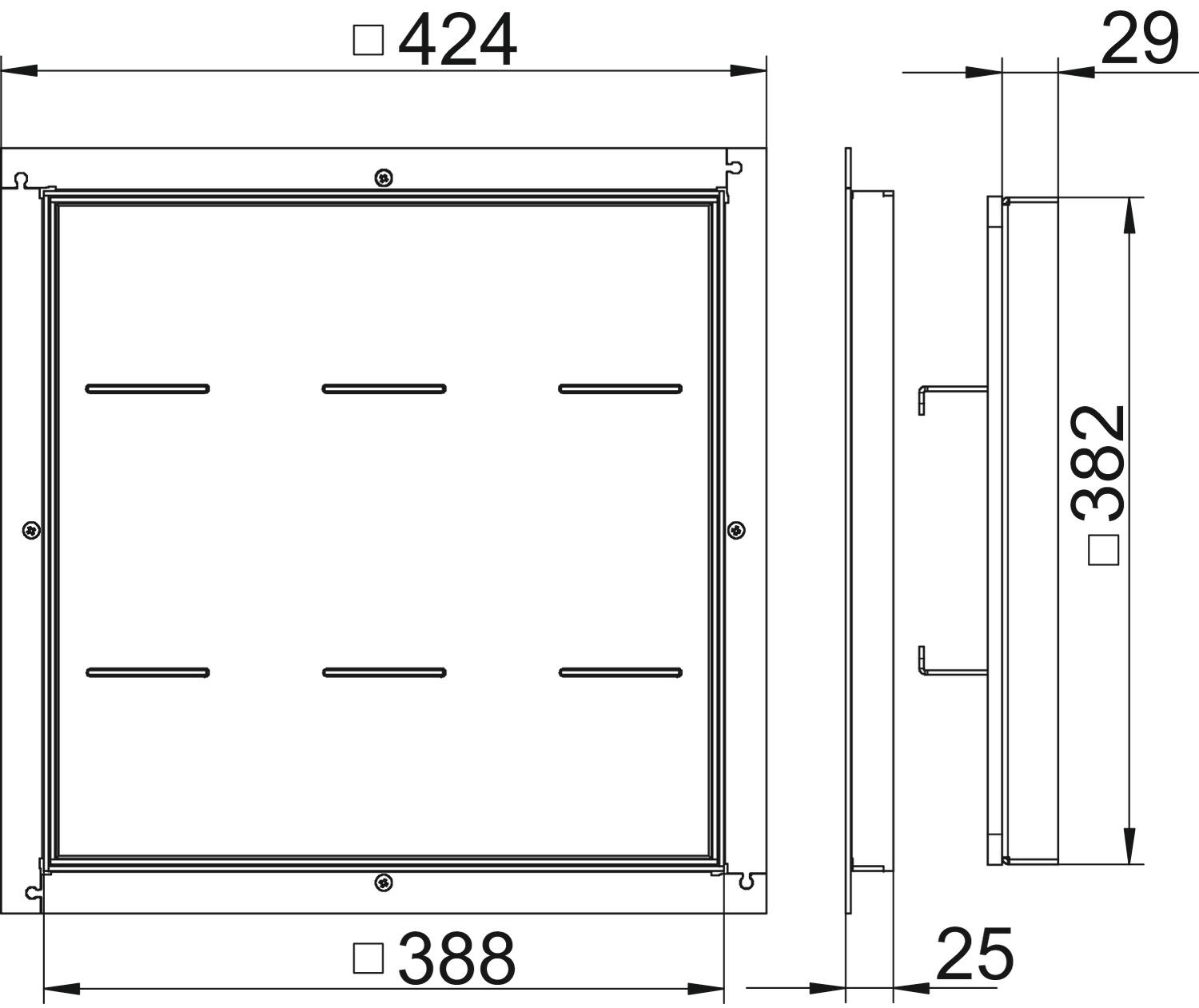

Dimensions
| Dimension A | 424 mm |
|---|---|
| Dimension B | 388 mm |
| Dimension C | 382 mm |
| Dimension h | 25 mm |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor covering thickness
Dimension h
Item no.
RK SL1 V3 25
95
23
25
7405916
RK SL1 V3 30
100
28
30
7405920
RK SL1 V3 40
110
38
40
7405928
Floor height, min.
Floor covering thickness
Dimension h
RK SL1 V3 25
Item no.
7405916
Floor height, min.
95
Floor covering thickness
23
Dimension h
25
RK SL1 V3 30
Item no.
7405920
Floor height, min.
100
Floor covering thickness
28
Dimension h
30
RK SL1 V3 40
Item no.
7405928
Floor height, min.
110
Floor covering thickness
38
Dimension h
40
