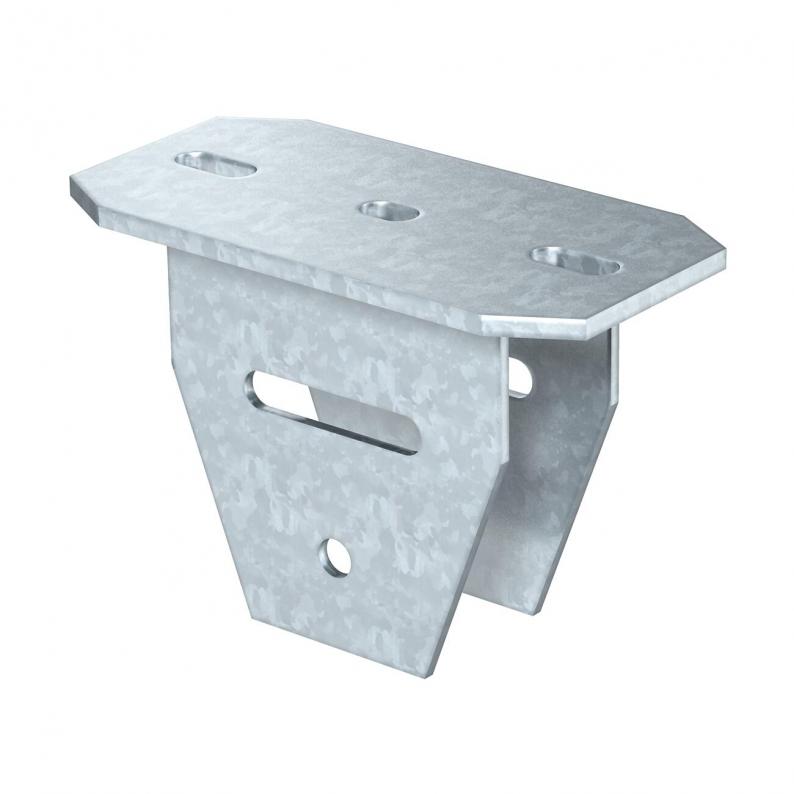

Head plate, variable FT
Type KU 7 VQP FT | Item no. 6349153 | EAN 4012196191475
Item no. / Type
6349153 / KU 7 VQP FT
Smallest selling unit: 1 piece
1piece
Description
Variable head plate for installation on US 7 support.
Please order fastening material (two hexagonal bolts SKS 12 x 80 and spacer DSK 45) separately. The maximum angle adjustment is 30° on one side.
Technical data

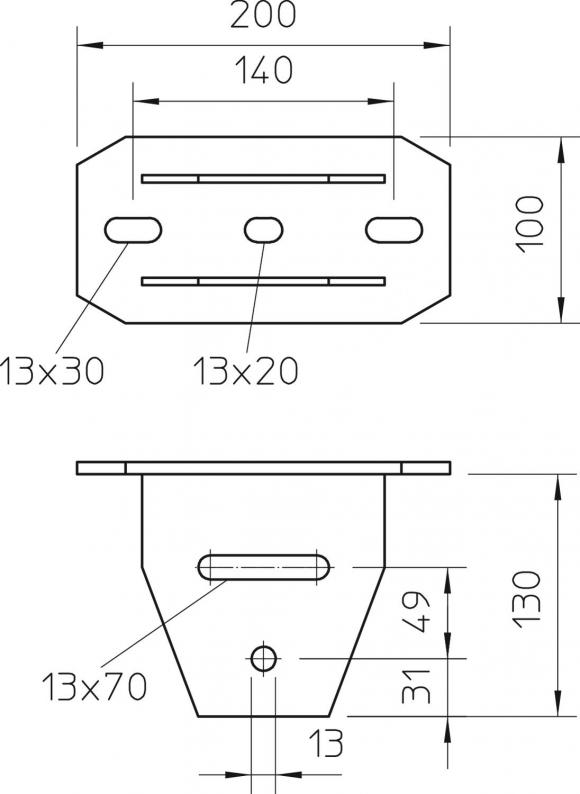

Dimensions
| Length | 200 mm |
|---|---|
| Width | 100 mm |
| Height | 136,5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Angle range, max. | 30 mm |
| Angle range, min. | 0 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Dimension | 200x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,4136 kg CO2e / 1 Piece |
