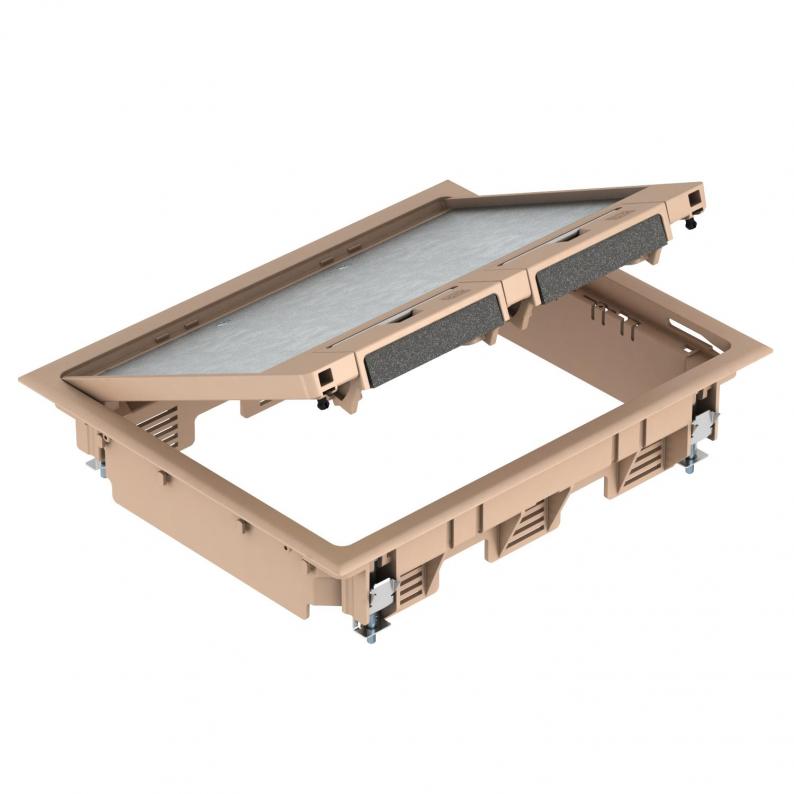

GES6 service outlet with handle clamp
Type GES6 U 1019 | Item no. 7405316 | EAN 4012195103127
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
6
Smallest selling unit: 1 piece
1piece
Description
Service outlet with handle clamp for up to 9 individual Modul 45 devices in three UT3 universal supports, use in trunking systems and system floors for indoor use.
Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Separate fastening brackets must be ordered for raised floor mounting.
Up to 6 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 73 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 9 |
| Seal installation option | no |
| Length of installation dimensions | 199 mm |
| Wide installation dimensions | 252 mm |
| Length of external dimensions | 220 mm |
| Wide external dimensions | 273 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | MT3 / GB2 |
| Heavy-duty version | no |
| Nominal size for device installation units | 6 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 2,500 N |
| Vertical load, large area | to 3,000 N |
| Version for | Rectangular |
| Opening mechanism | Handle |
| Clamping range D, max. | 31 mm |
| Clamping range D, min. | 9 mm |

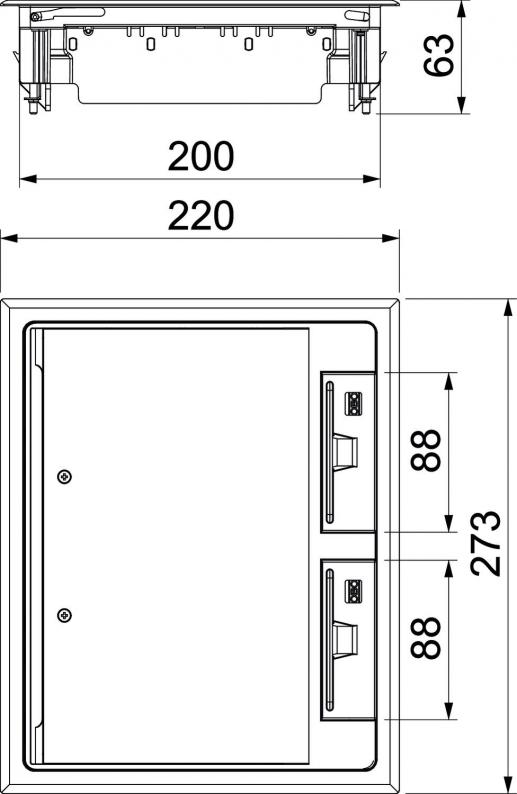

| Dimension | 273x220x61 |
| Material | Polyamide |
| Colour | Grey-beige; RAL 1019 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8182 kg CO2e / 1 Piece |
