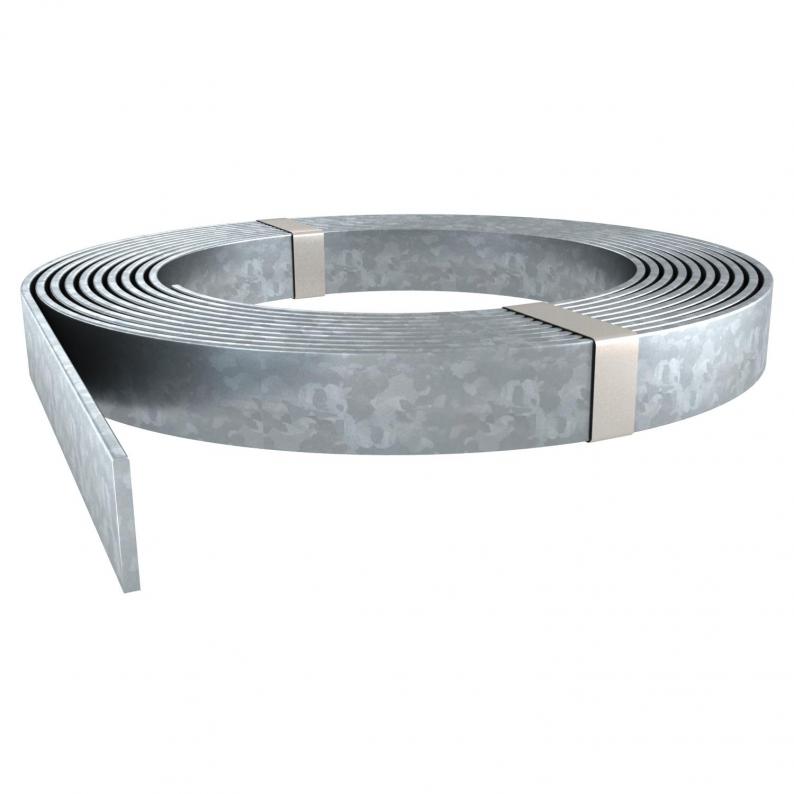

Galvanised steel flat conductor for earth
Type 5052 DIN 20X2.5 | Item no. 5019340 | EAN 4012195680468
Item no. / Type
Width
Height
Smallest selling unit: 122 m
122m
Description
• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
Technical data
Dimensions
| Width | 20 mm |
|---|---|
| Height | 2,5 mm |
| Dimension B | 20 mm |
| Dimension H | 2,5 mm |
Technical data
| Normal ring (ca. kg) | 50 |
|---|---|
| Cross-section | 50 mm² |
| Nomal ring (approx. m) | 122 |
| Dimension | 20x2,5mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Height
Item no.
5052 DIN 20X2.5
20
2,5
5019340
5052 DIN 25X3
25
3
5019342
5052 DIN 30X3
30
3
5019344
5052 DIN 30X3.5
30
3,5
5019345
5052 DIN 30X3.5
30
3,5
5019347
5052 DIN 30X4
30
4
5019350
5052 DIN 40X4
40
4
5019355
5052 DIN 40X5
40
5
5019360
Width
Height
5052 DIN 20X2.5
Item no.
5019340
Width
20
Height
2,5
5052 DIN 25X3
Item no.
5019342
Width
25
Height
3
5052 DIN 30X3
Item no.
5019344
Width
30
Height
3
5052 DIN 30X3.5
Item no.
5019345
Width
30
Height
3,5
5052 DIN 30X3.5
Item no.
5019347
Width
30
Height
3,5
5052 DIN 30X4
Item no.
5019350
Width
30
Height
4
5052 DIN 40X4
Item no.
5019355
Width
40
Height
4
5052 DIN 40X5
Item no.
5019360
Width
40
Height
5
